BRADMAC Mobile Column Lifts – Set of 4, Wired, 30 Tonne Capacity

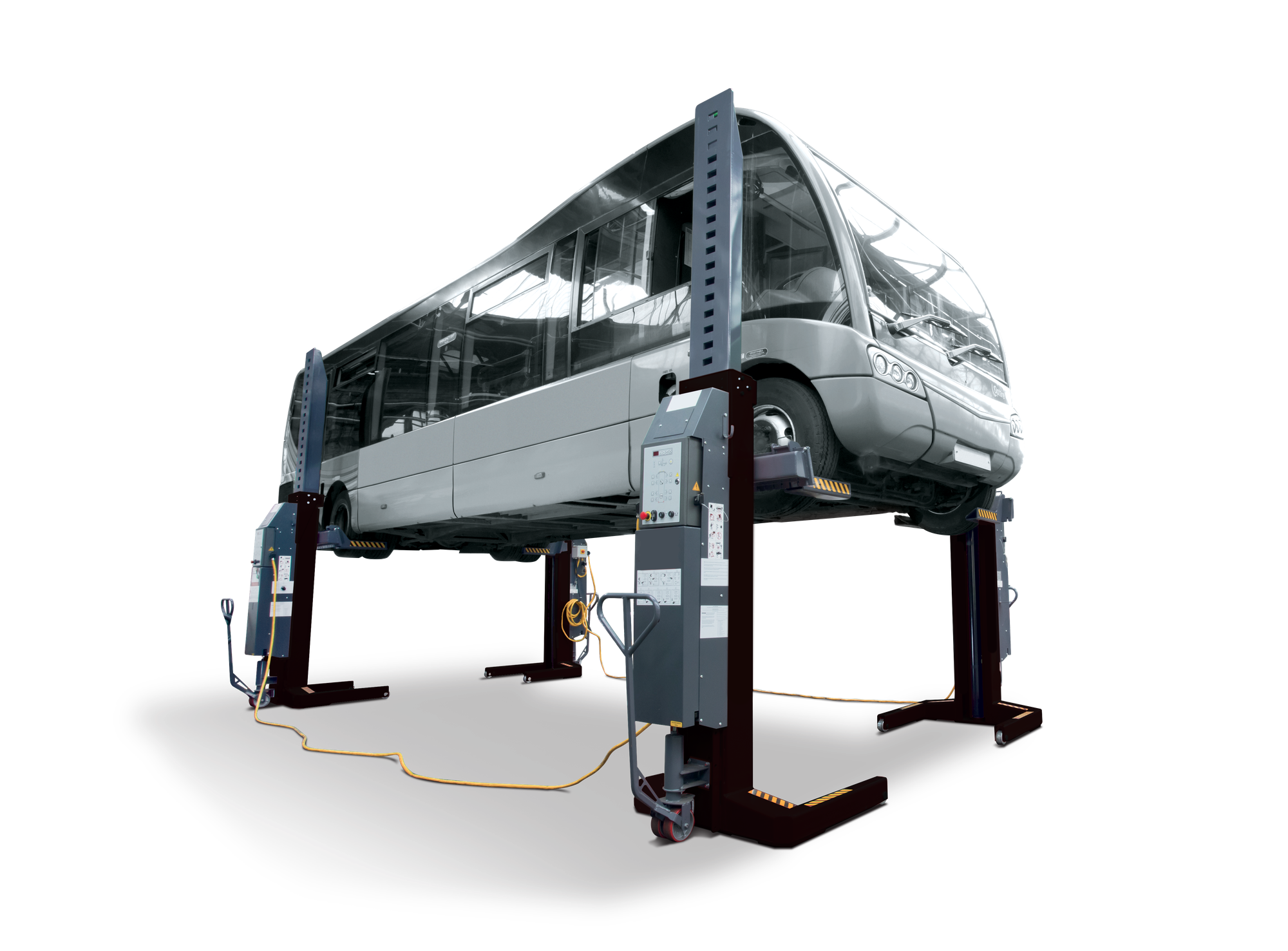

The BRADMAC Mobile Column Lift System provides a versatile lifting solution for professional vehicle workshops, commercial garages and heavy vehicle service facilities. This fully wired set of four mobile lifting columns offers a combined lifting capacity of up to 30,000 kg, subject to the manufacturer's specifications and permitted system configuration. The hydraulic cylinders are housed inside the carriages to help protect the chrome pistons. Adjustable lifting forks accommodate a range of compatible vehicle lifting points. The wired communication system connects the lifting columns to provide coordinated operation. Wireless communication options and configurations with six or eight columns may also be available. Contact AXGE for technical specifications, vehicle compatibility, installation requirements and advice on selecting the right lifting system for your workshop.

£20154.00
Add To Cart

Product Description


AX Garage Equipment offer you the,


Bradmac BCC754  - 4 Wired Mobile Columns £ 16,795.00 + vat  ( £ 20,154.00 inc vat )


NOTE :

All BRADMAC Products include a 2 year manufacturers warranty.

Delivery, Installation and training at your premises are included.

Electrical supply : A 3 Phase 415V supply + Neutral + Earth 50Hz

Scottish Highlands & Islands may incur extra delivery costs, please ring before you buy.

NOTE : We offer a Price Promise on all our sales.

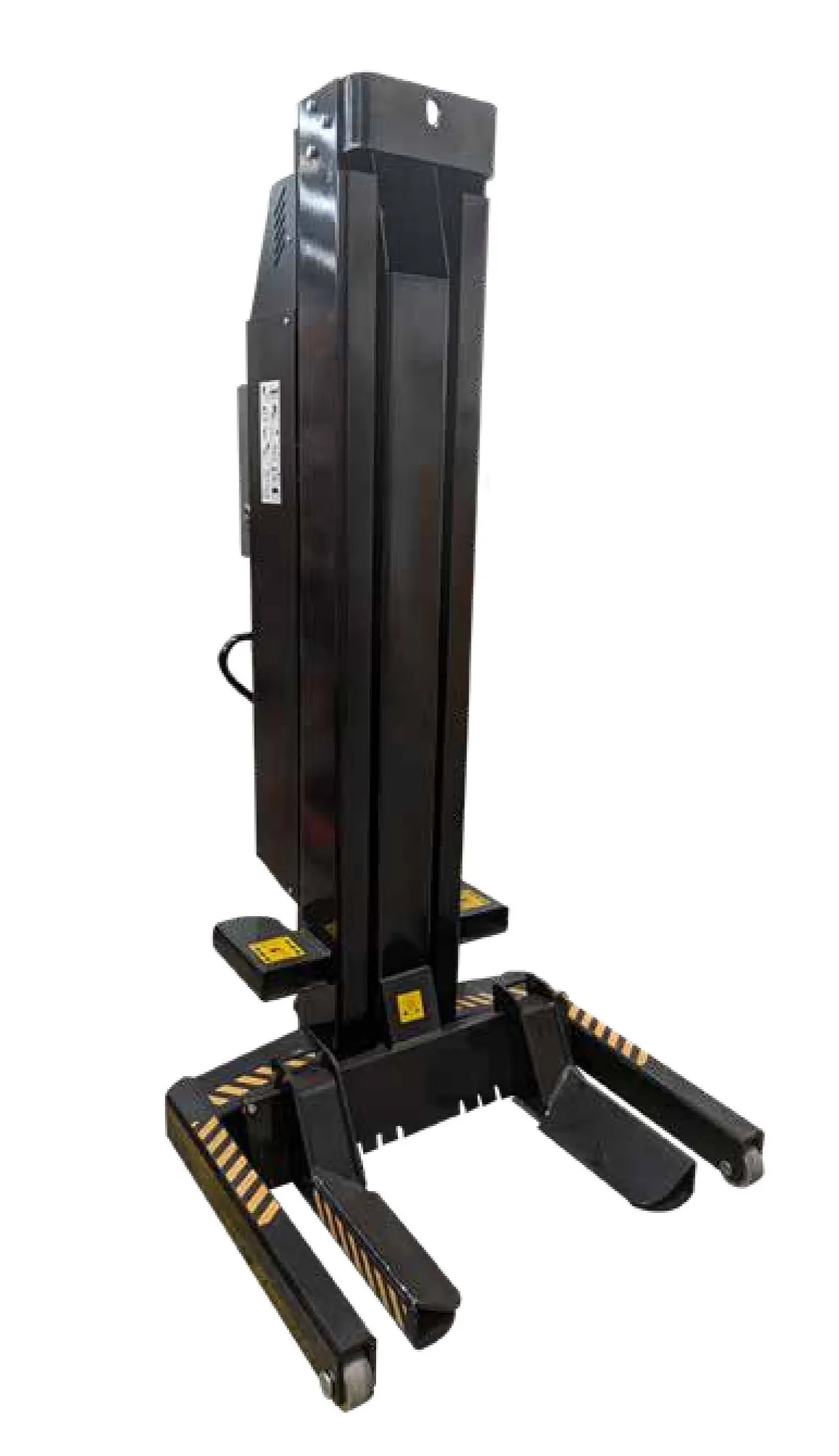

 A Set of Four Hydraulic Cabled Mobile Column Lifts

PRODUCT FEATURES

  • Inverted Hydraulic Cylinder lifting system
  • 7,500kg lifting capacity per column
  • Control lifting operations from any of the columns
  • Adjustable wheel forks for different wheel sizes    (700mm – 1400mm diameter)
  • Quick and easy interconnections of the control cables
  • Pallet truck style portability
  • Automatic jack brake when lifting
  • Locking safety device
  • CE approved Certification
  • Number of columns: 4
  • Net Weight per column: 620kgs
  • Lifting capacity per column: 7,500kgs
  • Max height reachable: 1,760mm
  • Lift cycle time up, then down: 119s
  • 65 secs to raise – 54 secs to lower


Options available include:

Short support axle stands 7500kg capacity each
(Max Height 1410mm - Min Height 880mm)

Tall support axle stands 7500kg capacity each
(Max Height 2030mm - Min Height 1520mm)



HGV Trailer Cross Beam 7500kg capacity


Note: 6 and 8 column sets with a wireless connection are also available, see our Website


Dimensions.Pricing Promise :

Please Note : All Pricing on our Website includes 20% vat.

We promise never to be beaten on price by our competitors, if you see a price advertised cheaper than us, we will match it for you, no problem!  We simply need to make sure the item you have seen is identical and in our stock, and then we’re good to go.

Some of the Scottish Highlands & Islands may incur extra delivery costs, if you are located in these regions, please ring before you buy.
