This lifting table is perfect for disassembly & assembly of vehicle components such as axle, engine, transmission and the EV vehicle battery. The scissor lift table is steerable with a lifting drawbar and equipped with two heavy-duty castors, making it very mobile and maneuverable. Additionally 2-fold adjustable and removable push handle.


£4386.00

Product Description


Order yours today :


EV CAR BATTERY LIFT - 1.2 tonne £3,655.00 + vat  ( £4,386.00 inc vat)


Note :

Prices quoted include delivery to your premises within the UK.

Scottish Highlands & Islands incur an extra delivery cost of £100.00 + vat.

We offer a Pricing Promise

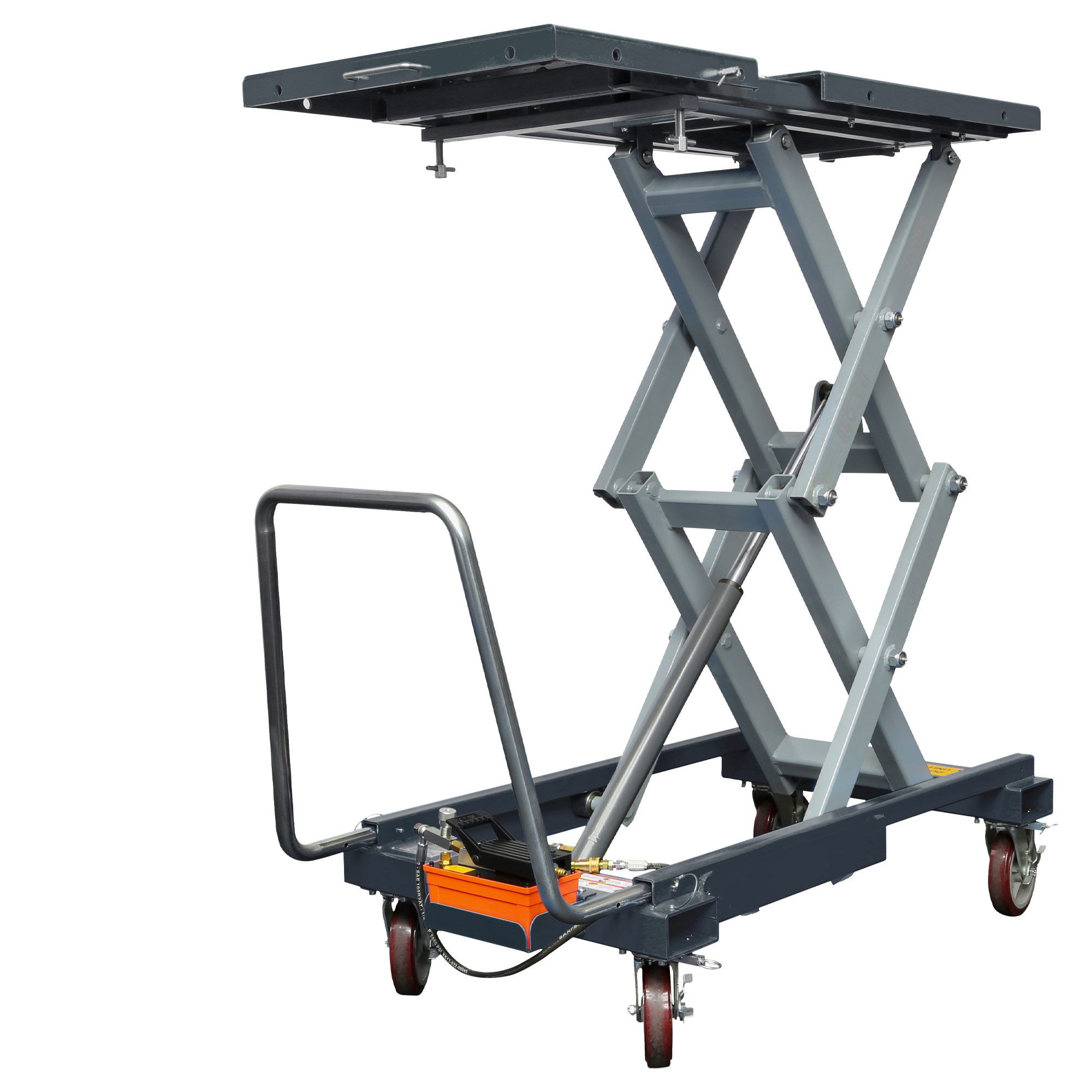

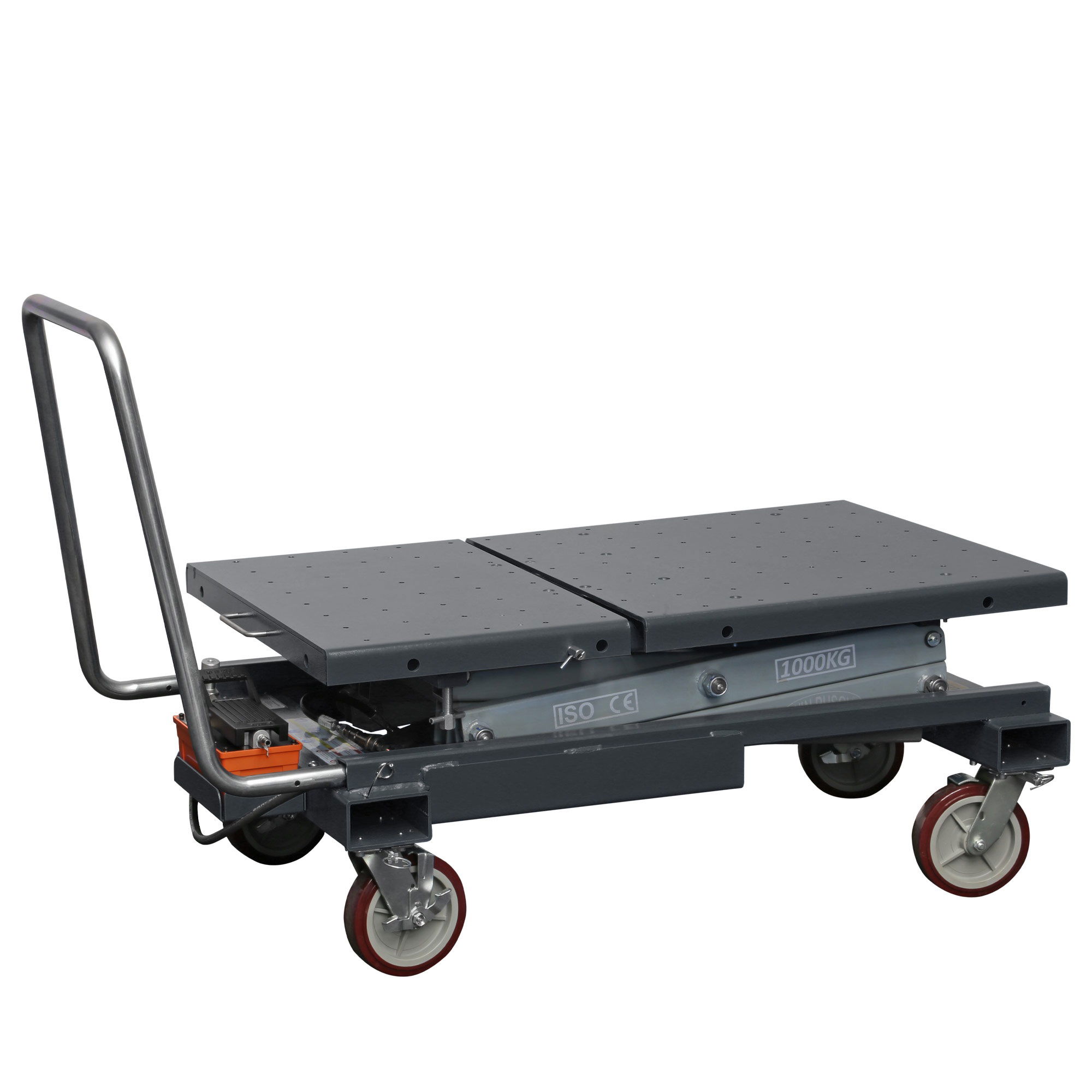

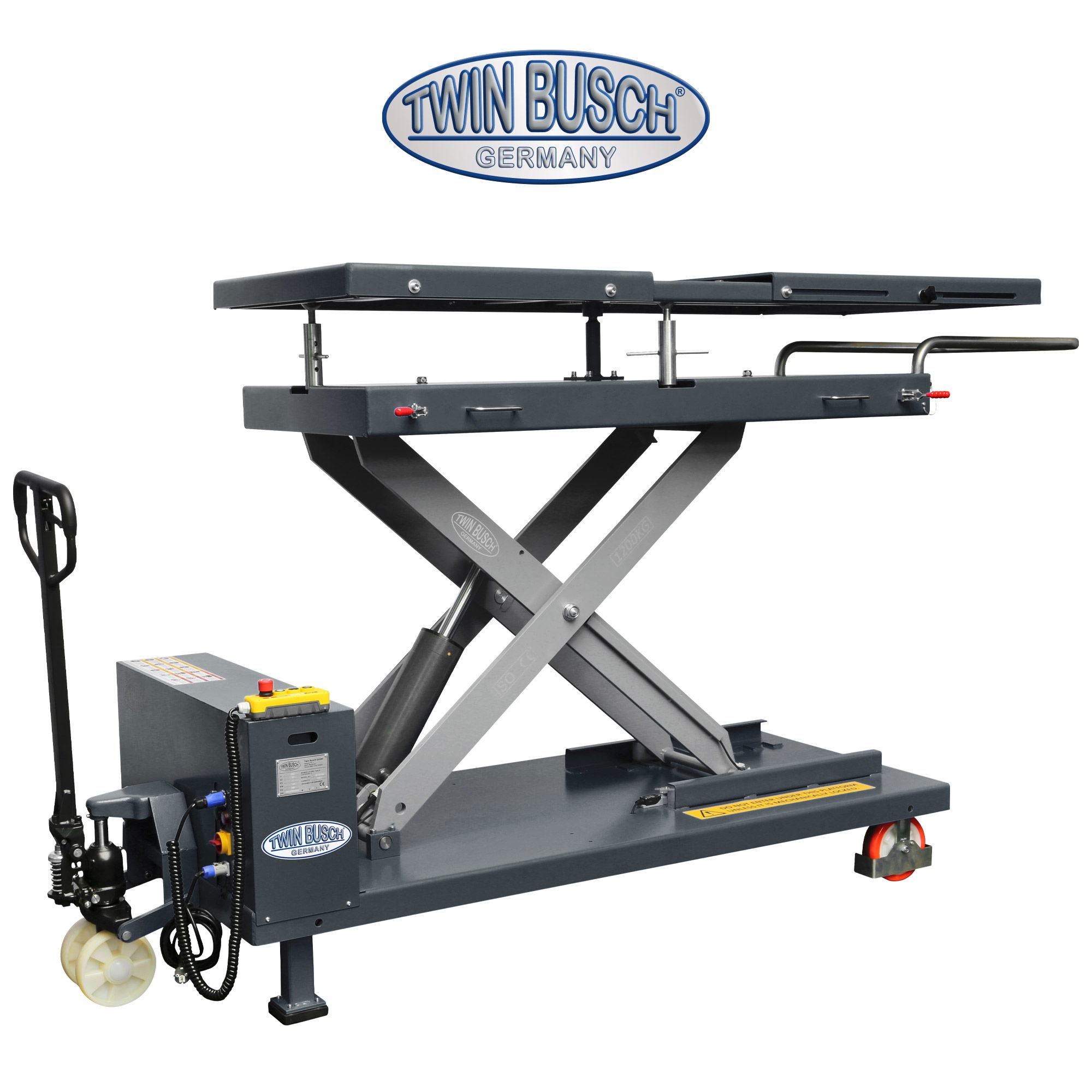

Battery Lifting Table for Electric Vehicles.

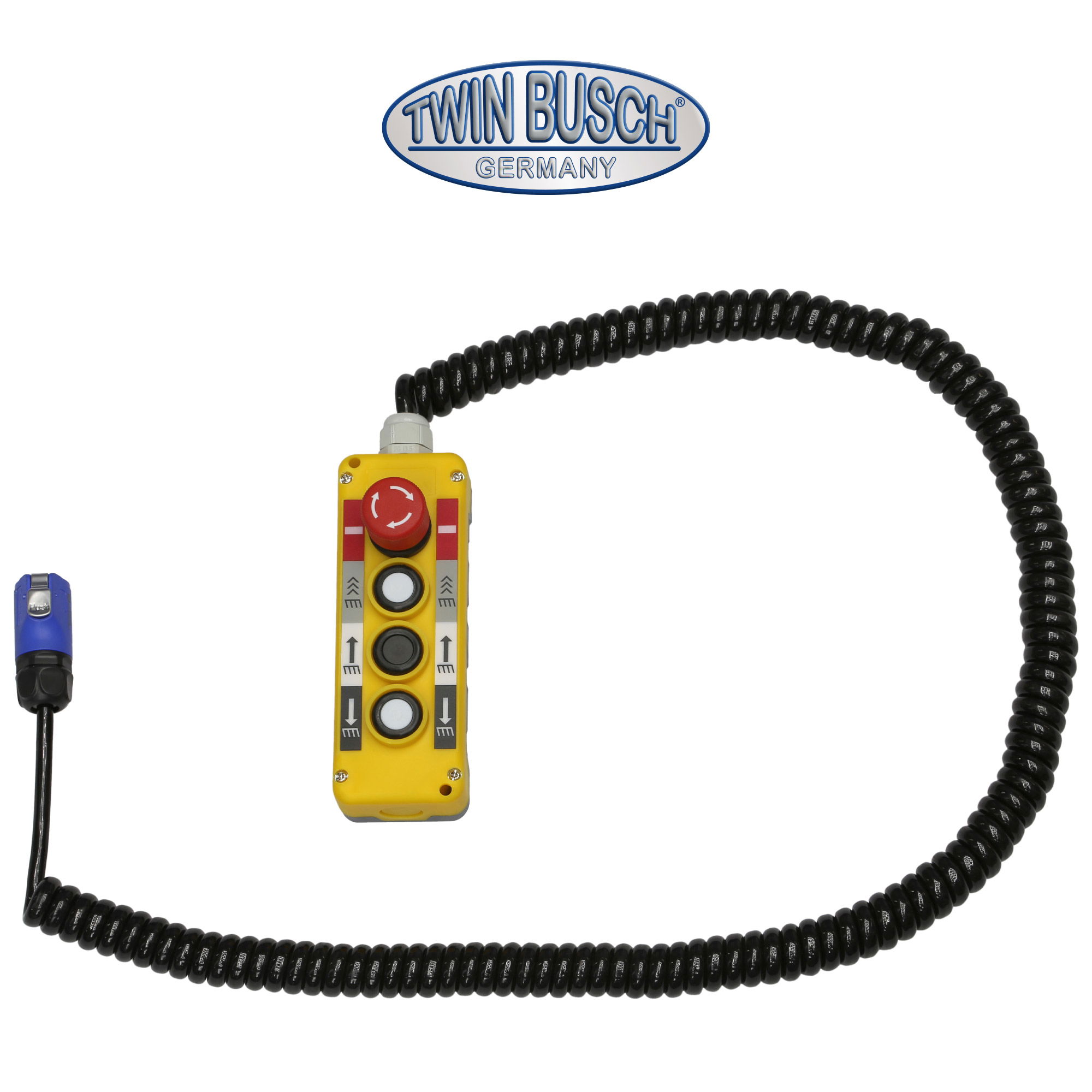

Professional scissor lift table 1200 kg, with 230 V electro-hydraulic drive and 2-fold lifting speed, cable remote control, inclination platform with extension, suitable for daily professional workshop use. (Optional 8 adapter plates and 8 pick-ups are available).

This professional scissor lift table can be moved as easily as a pallet truck.


Perfect for disassembly & assembly of vehicle components such as axle, engine, transmission and vehicle battery. Lifting platform slides approximately 40 mm in lateral movement and locks for easy placement. The adjustable mounting surface of the lifting platform is equipped with 136 threaded holes (M10) which, in combination with the optionally available 8 adapter plates and 8 pick-ups, can be used extremely flexibly for the respective positioning.

The scissor lift table is steerable with a lifting drawbar and equipped with two heavy-duty castors, making it very mobile and maneuverable. Additionally 2-fold adjustable and removable push handle.



Technical Data

Lifting capacity                                            1200 kg
Lifting height max.                                      1800 mm
                                                                       Ad max 2100mm
Minimum height                                           800 mm
Lifting time                                                   1 stage: 45 sec. /
                                                                       2nd stage 170 sec.
Drive voltage                                                230 V
Drive power                                                  1,5 kW
Fuse protection                                           16 A (C / slow)
Own weight                                                  767 kg
Lifting height (platform only)                     1800 mm
Lifting height (with adapter max. length)  2100 mm
Safety release                                              Automatic
Powder coated                                             Yes
Total width                                                    900 mm
Total length                                                   2354 mm

Colour (RAL7016)
Anthracite


Overall Dimensions:

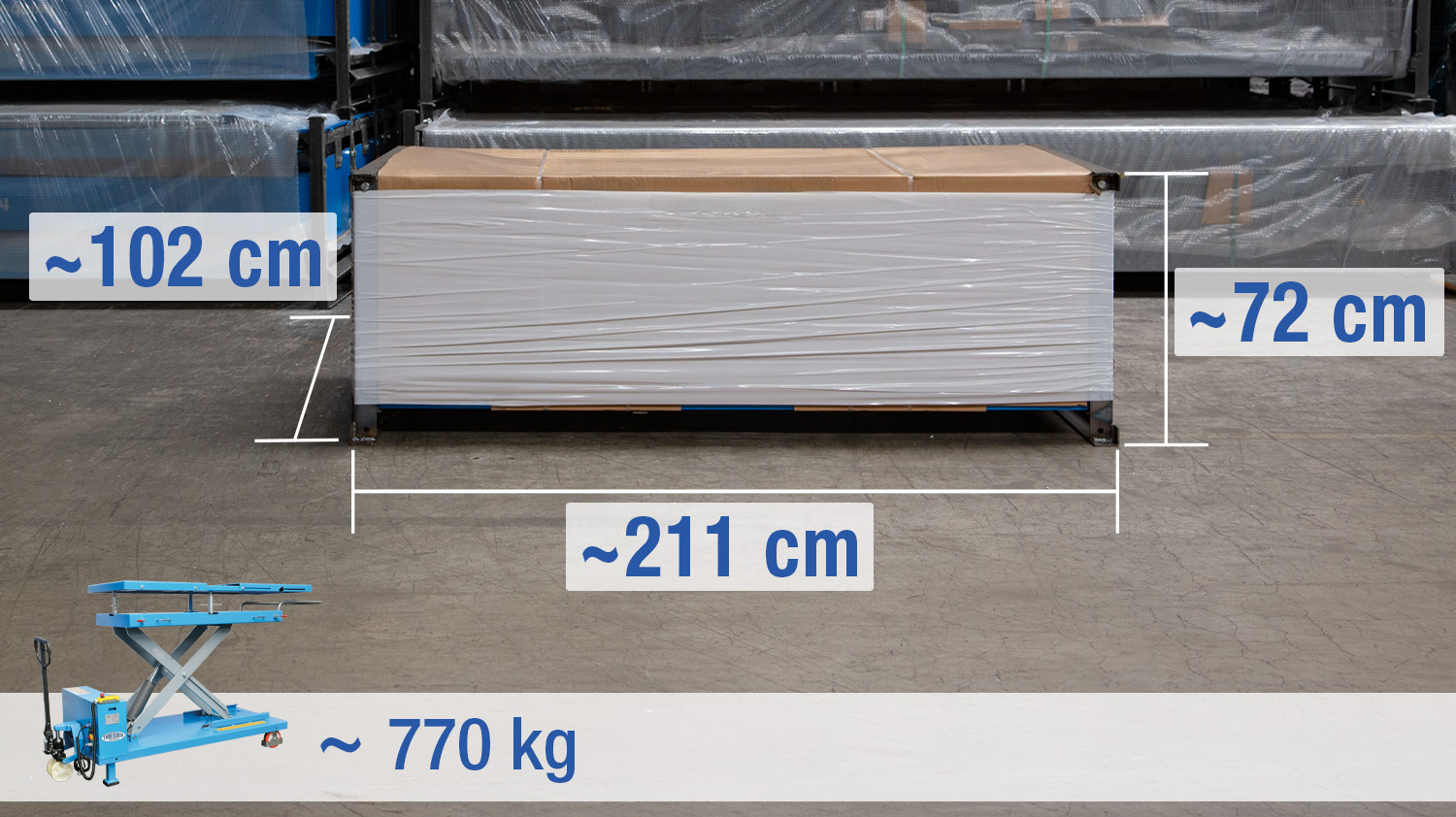

Dimensions and weight

Actual packaged product dimensions as delivered to your premises.
