ADAS Calibration Equipment.

AXGE Offer Price :

ADAS Calibration Equipment Package - £24,250.00 + vat (£29,100.00 inc)

Optional Item: Digital ADAS Easy Placing Kit,

Calibration tool positioning kit to be combined with radar accessories £995.00 + vat

Note :

ADAS Product include manufacturers 2 years warranty.

Delivery & Installation included at your companies premises.

A site survey will be completed prior to installation.

Customer to supply electrical supply.

Scottish Highlands & Islands may incur extra delivery costs, please ring before you buy.

NOTE : We offer a Price Promise on all our sales.

ADAS or Advanced Driver Assistance Systems

We all accept that wheel alignment is just a normal part of repairing and maintaining vehicles – if the geometry falls out of tolerance, the car may not drive correctly and the tyres might wear out quickly. The same principle applies to ADAS, which is little more than a camera and radar system, often mounted in the windscreen and front grill area. This equipment monitors a range activities such as changing speed limits, white lines, active cruise control and emergency braking systems.

After a repair the ADAS system could be affected especially the alignment of the camera and radar systems. So it’s important to ensure they are working correctly and that they are correctly aligned. For example, a frontal impact might mis-align the radar unit and a windscreen replacement can mis-align the camera. ADAS rigs allow you to test and, if necessary, re-align them and many garages have embraced the opportunity, invested in equipment and are making money.

Digital ADAS

An innovative ADAS solution with training, service and support. Introduced to the UK market in 2019, we are proud to offer the most advanced Digital ADAS System to date. This solution to ADAS Diagnostics has become the most popular choice for garages wanting to get to grips with ADAS diagnostics and it is easy to see why.

Hofmann Megaplan has already helped many customers across the industry equip their garage's with ADAS calibration machines, holding educational days and speaking to garage owners at industry-renowned shows across Europe such as Automechanika. ADAS diagnostics is fraught with concern and queries. What we've learnt is that through watching customers work with the Digital ADAS solution, many of these concerns are banished and queries answered!

Simple to operate

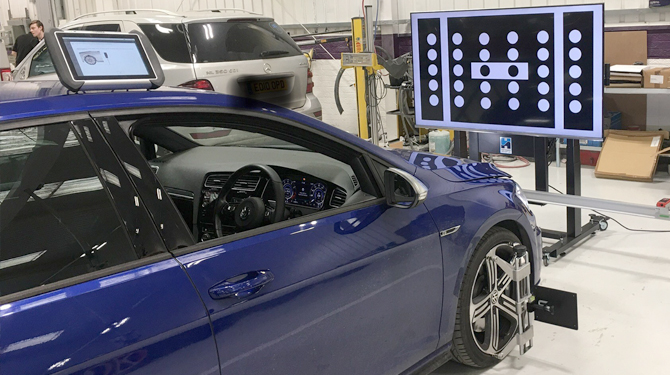

The Hofmann Megaplan digital ADAS alignment rig is simple to operate and calibration can be completed in a few simple steps by a single operator The digital system reproduces a vehicle specific calibration ‘pattern board’ image on a large-scale high definition monitor. A PC manages the images and communicates with a handheld diagnostic tool which guides the user through a step-by-step process to check and re-align the cameras.

Quick results

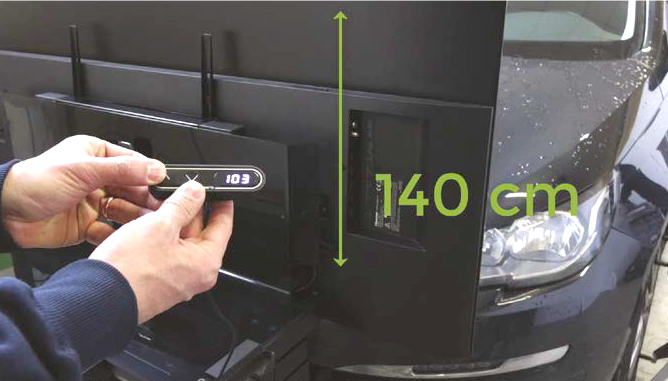

Average camera calibration time is approximately 10 minutes through the use of an electrically operated height-adjustable frame and laser distance measurement. The frame can be raised or lowered at the press of a button to reach the perfect height and no manual measurement is required. Laser measurement units accurately show the exact frame to axle distance and the system uses these figures to ensure the vehicle sees a perfectly aligned image, even if the frame has not been set exactly true with the vehicle.

Easy access to updates
Automatic online updates by WiFi connection.

Calibration can be completed, by yourselves in just 6 steps...

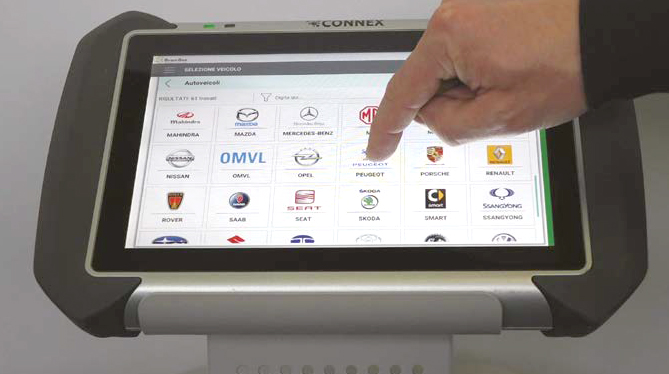

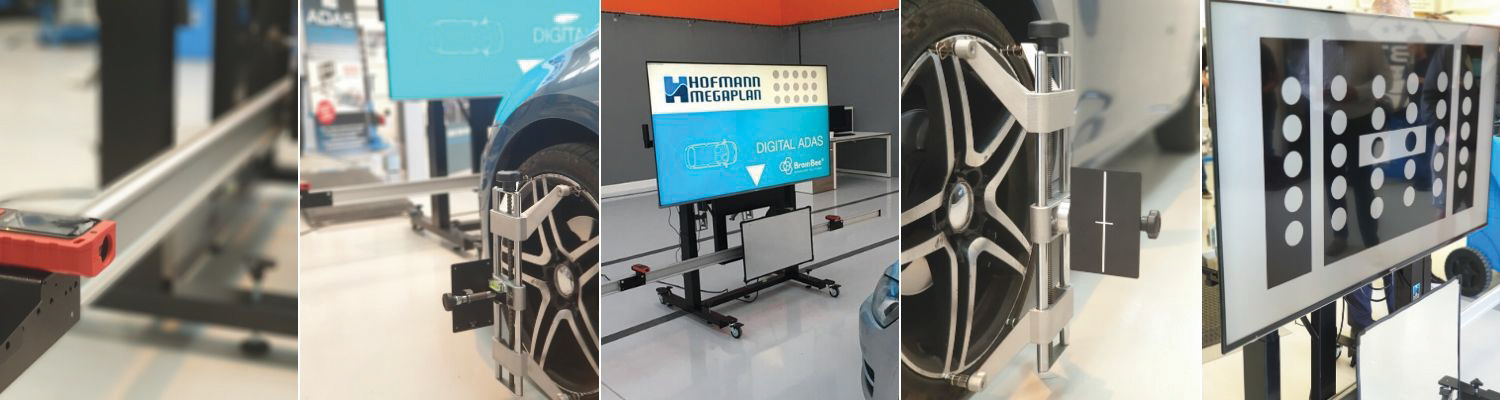

1. On the Connex diagnostic tool, select manufacturer and car model, then select “Digital ADAS”. The online help pops up, with instructions on how the car should be positioned	2. Place the wheel clamps on the front wheels, as indicated in the online help instructions	3. Place the digital target close to the car: the special support frame makes handling extremely easy

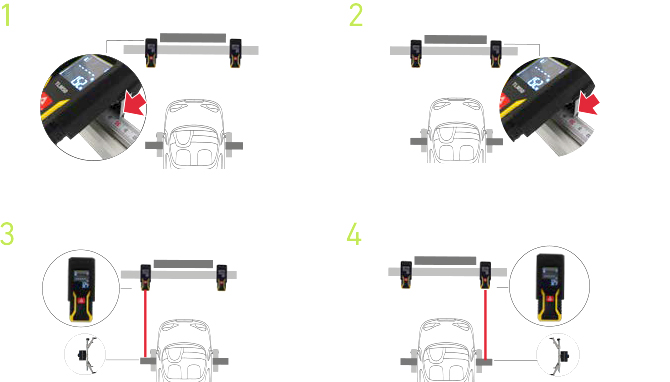

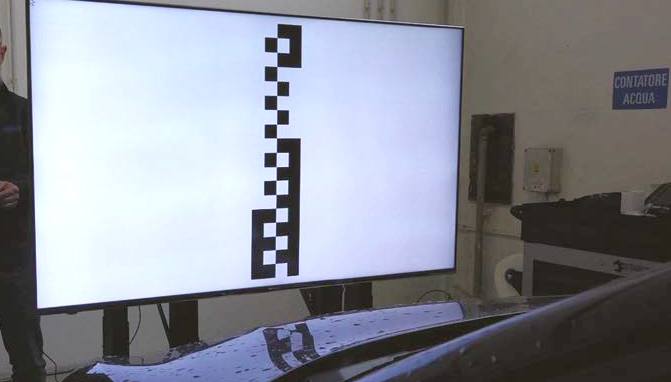

4. Enter the required values, using the two laser distance meters. These are the parameters required to execute the Keystone function	5. Adjust the height as indicated in the on-line help instructions. It’s very simple and easy via the remote control and the motorised sliding carriage	6. The calibration starts. The monitor will show the target, adapting it to the car position, and therefore ensuring the most accurate result

Price Promise :

We promise never to be beaten on price by our competitors, if you see a price advertised cheaper than us, we will match it for you, no problem!  We simply need to make sure the item you have seen is identical and in our stock, and then we’re good to go.

Please Note : All Pricing on our Website includes 20% vat :
