Giuliano SX116 Tyre Changer

AX Garage Equipment offer you the,

Giuliano SX116 Tyre Changer for £ 3,350.00 + vat  ( £ 4,020.00 inc vat )

NOTE :

ALL Giuliano Tyre Changers include a 2 year manufacturers warranty

on the tyre changer and 5 years on the motor and gearbox.

Delivery, Installation and training at your premises are included.

Electrical supply: A 13amp socket or 3 phase isolator, depending on choice.

Scottish Highlands & Islands may incur extra delivery costs, please ring before you buy.

NOTE : We offer a Price Promise on all our sales.

The SX116 ‘Swing-Arm’ tyre changer is a semi-automatic machine, of traditional design and build quality. The classic ‘swing’ design has been largely replaced in workshops over time by the more speedy and versatile ‘tilt-back’ models. However, there is still very much a place for this type of machine, most notably in mobile tyre fitting operations where space consumption is obviously a key factor. Therefore, unlike most swing-arm machines manufactured today, which are generally built to achieve a low price, this model is cleverly thought out to provide the best possible performance without compromising on space or reliability. As well as a very heavy duty structure (these machines are also loved by recycling operations where they need something very simple but fast and reliable to take the volume and hammering of ‘stripping’ tyres from rims), the SX116 offers an increased main column height and bead breaker opening than lower cost alternatives, ensuring the capability to handle not just large diameter, but also wide rims typical of rears on certain BMWs, Porsches etc. Boasting the famous ‘Power X’ 4 cylinder turntable, which provides an impressive 10” to 26” (24” outside) clamping range, the SX116 can be supplied in a 12v format or 240v operation.

Functions of the SX116.

• Robust vertical tower, swinging horizontal arm with ø 41 mm operating arm.
• Bead breaker double effect Cylinder ø 200 mm.
• Reinforced Chassis.
• Tabletop thickness 12 mm.
• Fitting head designed for both standard and low profiled tyre applications.
• “Easy Access” extractable pedal box for quick service.
• 12V version suitable for mobile service available upon request. Ideal for mobile tyre fitters working from a VAN.
• Plastic protections on fitting head to avoid any damage to alloy rim.
• Two powerful clamping cylinders provide uniform clamping pressure.
• Suitable for Tubeless tyre bead seating system (optional).
• Suitable for PRESS ARM ECO additional arm to ease mounting operations of low profiled and UHP tyres (optional).
• Pedal Inflation Set. Installed on the side of the tyre changer, provides inflation system on board the tyre changer, activated by pedal (optional).
• 5 YEARS WARRANTY on “Made in Giuliano” motor and gearbox.
• Designed, built and engineered in Italy.
• "Right to repair" - all service parts available for at least 10 years since production, easy maintenance and reduced environmental impact.

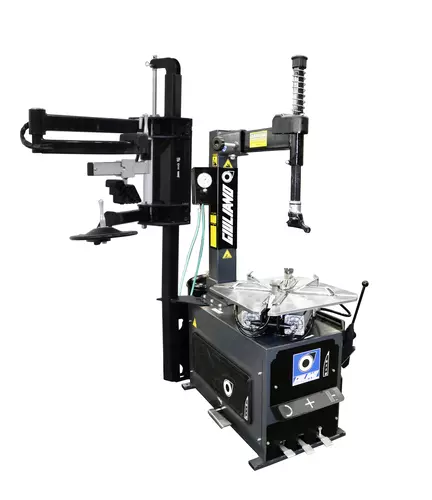

PA Version, with fitted assist arm.

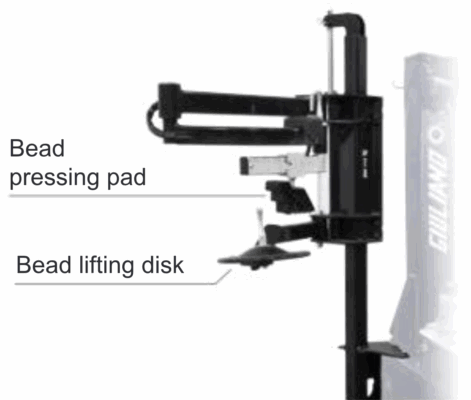

Optional PA Arm

Technical

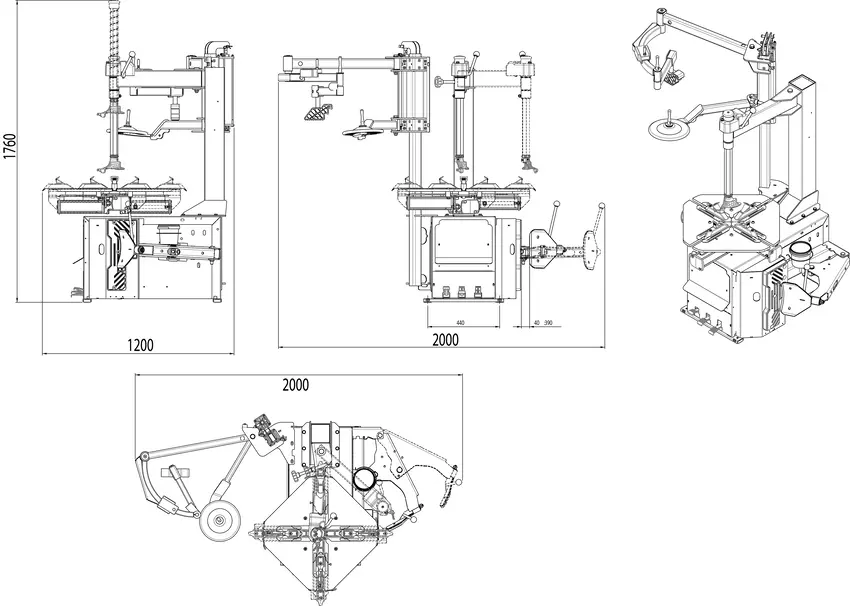

Dimension in your workshop (without PA Arm and with)

Pricing Promise :

We promise never to be beaten on price by our competitors, if you see a price advertised cheaper than us, we will match it for you, no problem!  We simply need to make sure the item you have seen is identical and in our stock, and then we’re good to go.

Please Note : All Pricing on our Website includes 20% vat.
