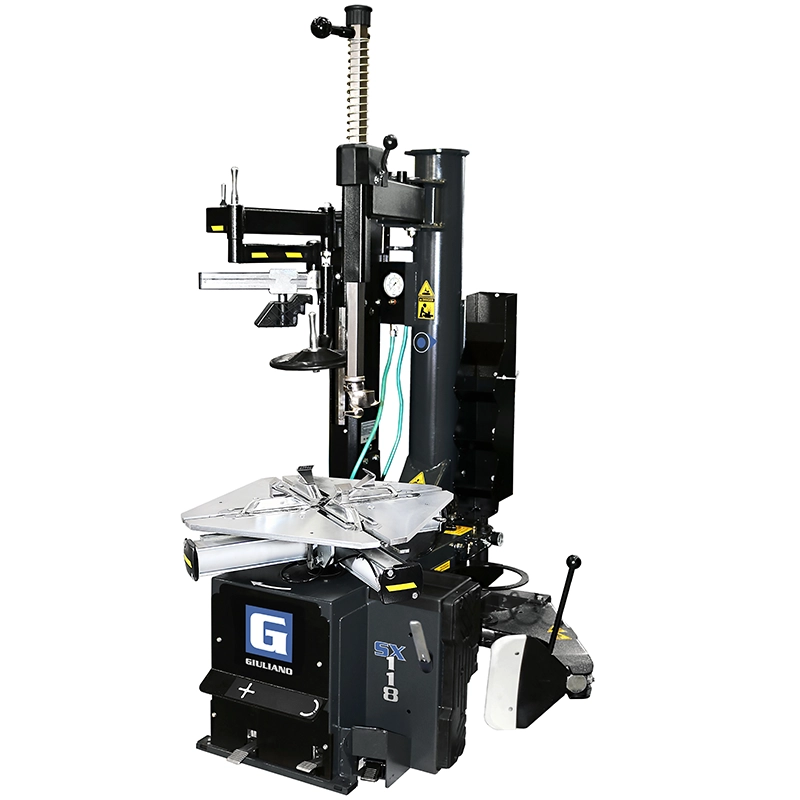

Giuliano SX118 Tyre Changer
Building on the principle of the SX116, the 118 model is effectively an oversized version of the old school swing-arm design, ensuring an increased capability which has become especially popular with motorsport support teams and higher end mobile fitting operations.
- Brand: Giuiliano
- SKU: SX118
Product Description
AX Garage Equipment offer you the,
Giuliano SX118 Tyre Changer for £ 3,825.00 + vat ( £ 4,590.00 inc vat )
NOTE :
ALL Giuliano Tyre Changers include a 2 year manufacturers warranty
on the tyre changer and 5 years on the motor and gearbox.
Delivery, Installation and training at your premises are included.
Electrical supply : A 13amp socket or 3 phase isolator, depending on choice.
Scottish Highlands & Islands may incur extra delivery costs, please ring before you buy.
NOTE : We offer a Price Promise on all our sales.
Building on the principle of the SX116, the SX118 model is effectively an over-sized version of the old school swing-arm design, ensuring an increased capability which has become especially popular with motorsport support teams and higher end mobile fitting operations. As well as a deeper chassis to house an even bigger OD (Overall Diameter of the tyre), the big difference is in the cylindrical main column. This incredibly strong design not only allows for an even taller option over the SX116 (think about extra-wide wheels and the difficulty that can be faced removing the bottom bead if the column is not tall enough), but it also serves as an air-reservoir, storing a supply of air which can be used to shoot high pressure from the jaws and help seat the beads on badly stored or 4×4 tyres. As with all Giuliano tyre changers, the Maxi Pro also features our famous Power X turntable.
Functions of the SX118.
• Designed and engineered in Italy, assembled in the UK
• Includes Power X Turntable with 4 clamping cylinders
• 3140kg Bead Breaker Pressure
• Extra-tall main column which also serves as an air tank for use when seating stubborn beads
• Minimum 2 years on-site parts and labour warranty
- 5 YEARS WARRANTY on “Made in Giuliano” motor and gearbox.
- Designed, built and engineered in Italy.
- "Right to repair" - all service parts available for at least 10 years since production, easy maintenance and reduced environmental impact.
Technical
| Rim clamping range from outside | 10" - 22" Adjustable jaws can be pre-set in 3 different holes on slides, to start clamping range from 10", 11" or 12". Tabletop cylinder stroke = 10" |
| Rim clamping range from inside | 12" - 24" Adjustable jaws can be pre-set in 3 different holes on slides, to start clamping range from 10", 11" or 12". Tabletop cylinder stroke = 10" |
| Max. tyre diameter | 1100 mm (43") |
| Max. tyre width | 330 mm (13") |
| Bead breaker cylinder force at 10 Bar | 3140kg |
| Operating pressure | 10 bar (145 Psi) |
| Power supply | 220V-ph as standard. Can be ordered in 400V-3ph. |
| Motor power | 0,55 kW (3ph) |
| Rotating speed | 7 rpm |
| Pre-set tyre inflating pressure | 3,5 bar (50 Psi) |
| Net weight | 190 Kg |
| Max overall dimensions | 1170 x 960 x 1760 mm |
