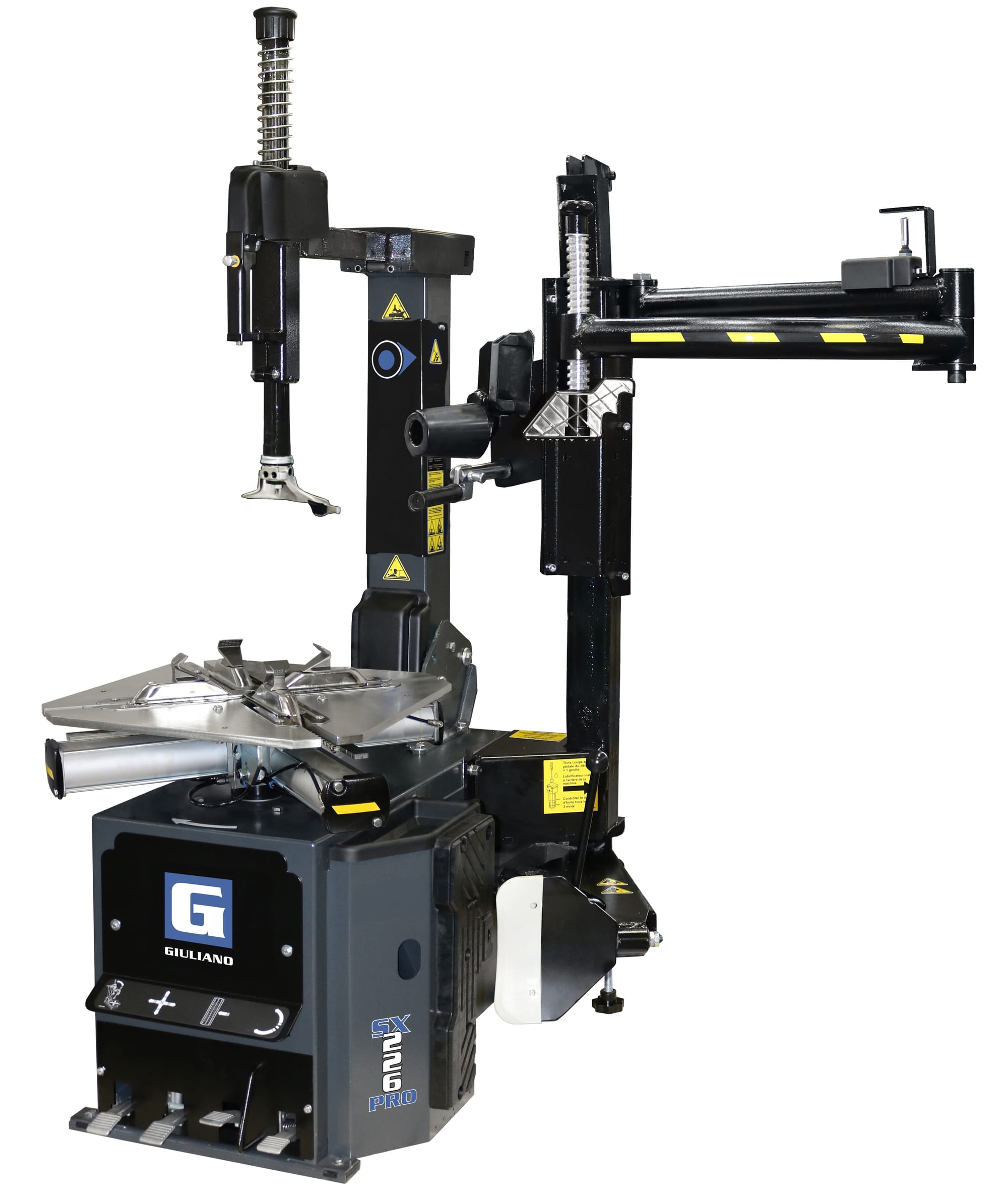

Giuliano SX226 Pro Tyre Changer

AX Garage Equipment offer you the,

Giuliano SX226 Pro Tyre Changer for £ 4,200.00 + vat  ( £ 5,040.00 inc vat )

NOTE :

ALL Giuliano Tyre Changers include a 2 year manufacturers

warranty on the tyre changer and 5 years on the gearbox.

Delivery, Installation and training at your premises are included.

Electrical supply : A 13amp socket or 3 phase isolator, depending on choice.

Scottish Highlands & Islands may incur extra delivery costs, please ring before you buy.

NOTE : We offer a Price Promise on all our sales.

Automatic tilt back tyre changer with dual assist arm for tyres with rim from 10" to 24"

(maximum wheel diameter 1100 mm./43", maximum wheel width 390mm./15").

One dual assist arm helps while mounting/demounting tyre.
Suggested for mid volume tyre-shops, garages and repair shops.

Thanks to a progressive development in line with rims and tyres as they too evolve, the SX226 Pro can still be set apart from the competition for a number of very important reasons. For a start, the chassis and main column are designed in a way that, whilst more expensive to produce, provides a much stronger arrangement, not only increasing the life, but making it far safer for use with alloy or painted rims along the way. Then there is the turntable, which uses our famous Power X System incorporating 4 clamping cylinders, instead of the cheaper and unquestionably inferior 2 cylinders typically employed. Alongside other less obvious advantages such as the large diameter bead breaker chamber which delivers 20% more power than average, or removable pedal box which is a godsend if one ever needs to replace a pedal spring, the SX226 Pro utilises our often copied (never equalled) HP4 assist arm. The HP4 is, as the model number suggests, the 4th generation of the HP arm which was launched some 20 years ago, and has gone on to become the most imitated design in the business! However, this latest version has set the bar again, with the new additional roller, meaning that as wheels have got even larger, fitting and removing low profile tyres remains as easy as it is safe.

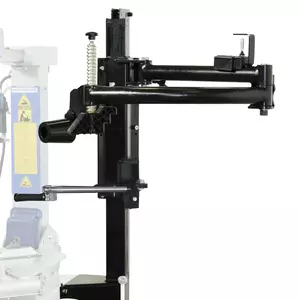

HP4 Heavy Duty Dual Assist Arm

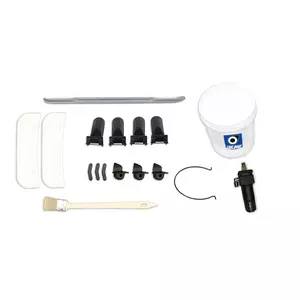

Standard Accessories.

Functions of the SX226 Pro.

• Tilt back head, sliding horizontal arm with ø41 mm operating arm;
• Bead breaker double effect Cylinder ø 200 mm;
• Reinforced Chassis
• Tabletop thickness 12 mm;
• 5 year warranty on “Made in Giuliano” gearbox.
• Fitting head designed for both standard and low profiled tyre applications;
• Tyre inflation by pedal (optional);
• Equipped with HP4 dual assist arm (standard);
• Suitable for Tubeless tyre bead seating system (optional);
• “Easy Access” extractable pedal box for quick service;
• Available in 3ph-1 speed, 3ph-2 speed, 1ph - 1 speed and 1ph-2 speed (inverter) version.
  MOTOINVERTER for granting faster, more accurate and reliable drive for your tyre changer;
• Designed, built and engineered in Italy.

Technical

Overall Dimensions.

Pricing Promise :

We promise never to be beaten on price by our competitors, if you see a price advertised cheaper than us, we will match it for you, no problem!  We simply need to make sure the item you have seen is identical and in our stock, and then we’re good to go.

Please Note : All Pricing on our Website includes 20% vat.
