HGV Roller Brake Tester with Load Simulation
The AXGE7000LS Heavy Duty Brake Tester has built-in load simulation with hydraulically operated lifting beds and is the ideal tool in your workshop to evaluate the performance, efficiency and durability of the vehicle’s braking system under various real-world conditions.
- Brand: AXGE/VTEQ
- SKU: 7000LS
Product Description
AXGE Offer Price :
AXGE/VTEQ 7000LS HGV load simulator Roller Brake Tester £51,750.00 + vat (£62,100.00 inc)
Includes the one-piece installation frame and load simulator rails.
Note:
The installation frame requires installation by your builder.
All Roller Brake testers include a 3 years manufacturers parts warranty.
Delivery, Installation and training at your premises are included.
Scottish Highlands & Islands may incur extra delivery costs, please ring before you buy.
We offer a Price Promise on all our sales.
The AXGE7000LS model brake tester, the ideal choice in your workshop given its ability to evaluate the performance, efficiency and durability of the vehicle’s braking system under real-world conditions. Fitted with load simulation, it can replicate different loads and driving scenarios to ensure the vehicles brakes are functioning optimally in different weight distributions and stress levels.
The 7000LS is a fully in-ground brake tester for light and heavy vehicles, which features hydraulic lifting beds for load simulation.
Each roller bed is lifted on 4 hydraulic cylinders and is controlled by software that has built-in safety features, protecting both the vehicle and operator during the brake test. The 7000LS can lift 16,000kg axle loads to a unique height of 255mm above floor level.
Installation:

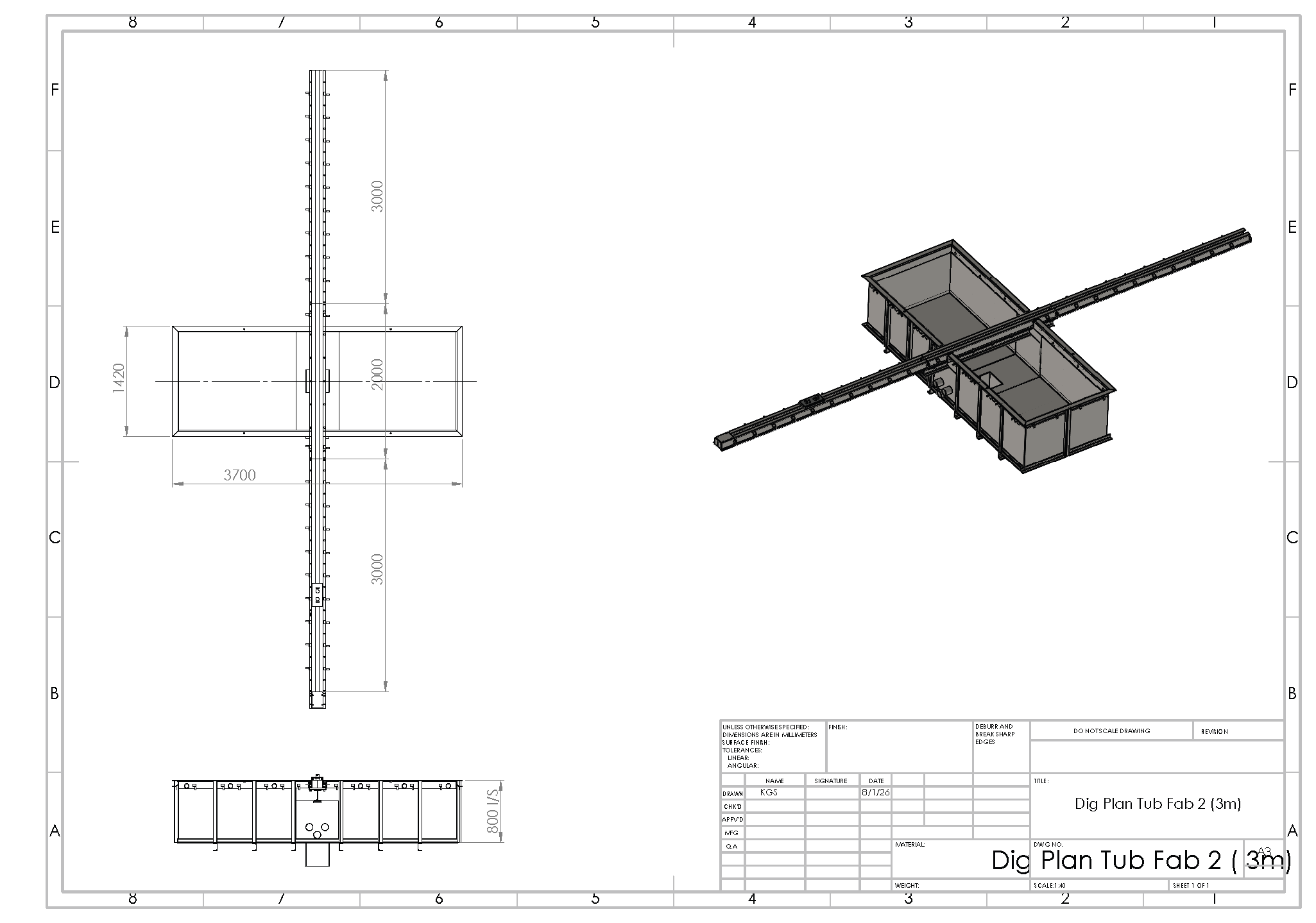

Supplied complete with metal sub-frame and load simulator rails to enable an easier installation.

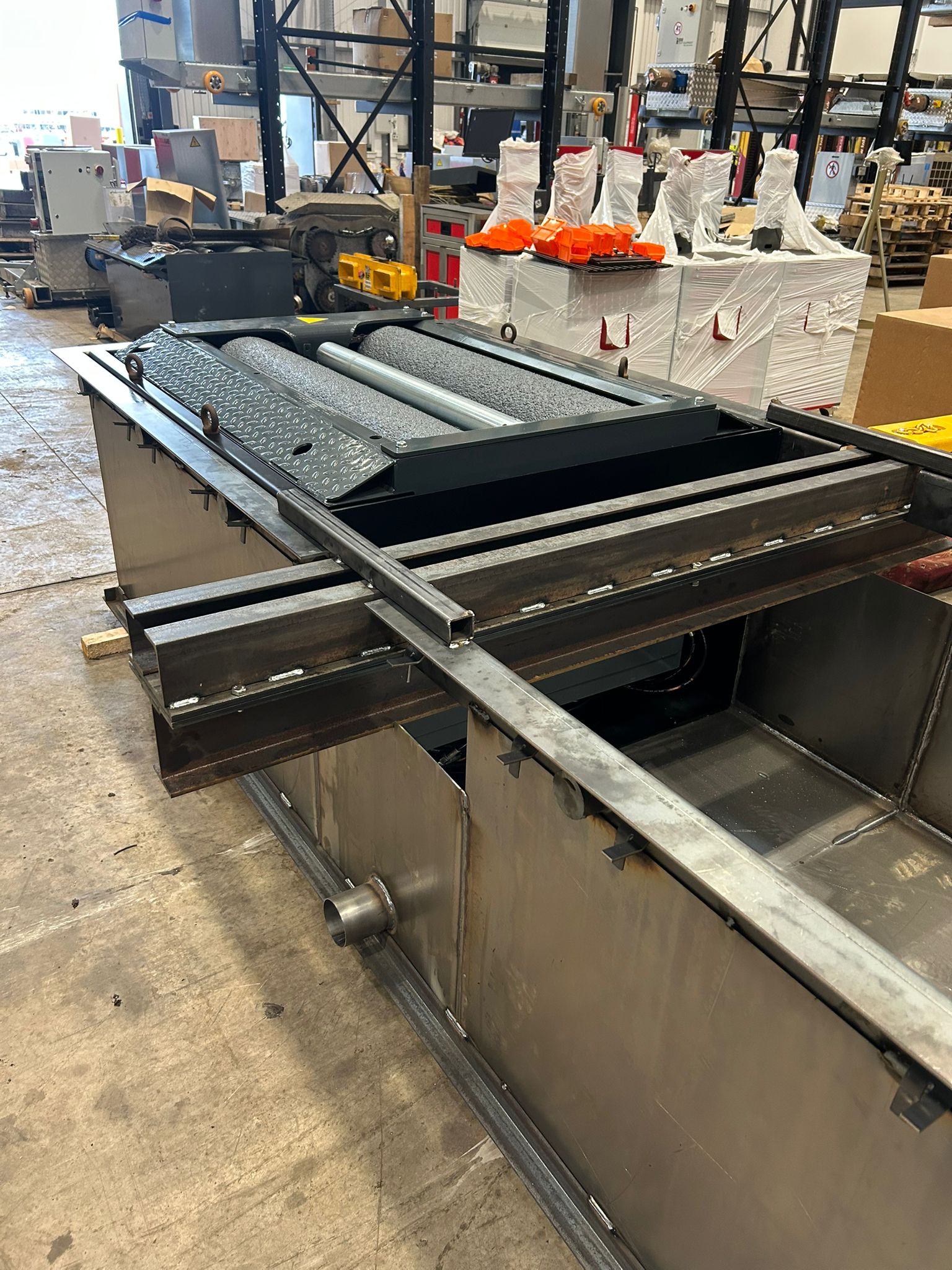

Extra strong "one piece" installation frame.
Load Simulator Rail pre-installed to frame.
Installation showing the Load Simulator rails.
Roller Brake Tester units installed ready for use.
Specification AXGE 7000LS
Roller Size (each) | 2 x 1150 x 271mm |
Max. Axle Weight | 18.000 Kg. (Option of 20.000 Kg available) |
Rollers Separation | 475 mm |
Test Speed | 3 Km/h |
Motors | 2 x 11 kW |
Friction Coefficient | Dry> 0,8 Humid> 0,6 |
Measurement Range | 0 ÷ 40 kN |
Power Supply | 3 x 400V 50 / 60 Hz |
Electrical specification | 63 Amp per phase fused isolator, 3 Phase, Earth & Neutral, 10mm2 Cable. |
Working Conditions | Temperature -5 ÷ +40 ºC Relative Humidity < 95% |
Standard Steel Cassette for simple installation by customer/builder :
If you want want minimal downtime and don't want delays due to the building works required?
The AXGE7000LS comes with a pre-fabricated steel cassette, simply cut out the concrete floor and lower in the one-piece steel cassette, works could be done over a weekend.
Pricing Promise :
We promise never to be beaten on price by our competitors, if you see a price advertised cheaper than us, we will match it for you, no problem! We simply need to make sure the item you have seen is identical and in our stock, and then we’re good to go.
Please Note : All Pricing on our Website includes 20% vat.
