HGV Transmission Jacks from MAJORLIFT, 2000kgs
Majorlift transmission jacks for HGV's can be purchased as a floor standing unit, for use under a vehicle lift, mobile columns or within an inspection pit. There are 4 models in this range, all have a 2000kgs lifting capacity.
- Brand: Majorlift
- SKU: VTJ2000
Product Description
VERSIONS 1 & 2 for use under a FOUR POST LIFT or MOBILE COLUMNS, 2000kgs:
1. VTJ2000 - Manually operated Vertical Transmission Jack with standard lifting head £3,250.00 + vat (£3,900.00)
2. VTJ2000A - Air operated Vertical Transmission Jack with standard lifting head £3,900.00 + vat (£4,680.00)
VERSIONS 3 & 4 for use inside a INSPECTION PIT, 2000kgs:
3. VTJ2000P - Manually operated Vertical Transmission Jack (pit version) with standard lifting head £3,250.00 + vat (£3,900.00)
4. VTJ2000PA - Air operated Vertical Transmission Jack (pit version) with standard lifting head £3,900.00 + vat (£4,680.00)
Note : "A" versions are Air Operated, therefore they will require a compressed air supply.

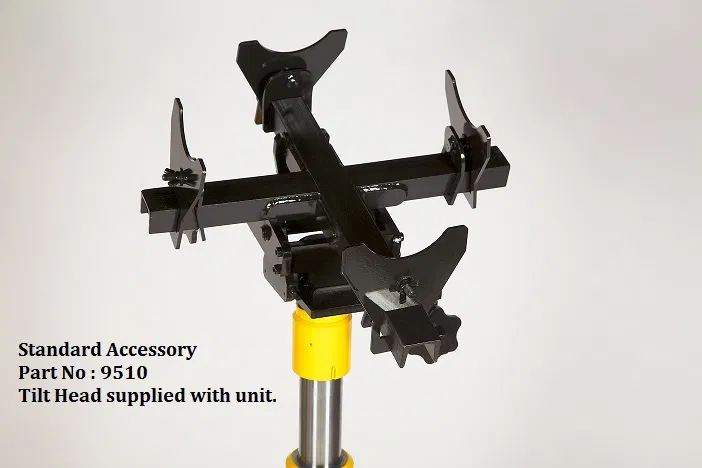

Standard Adaptor 9510 (supplied with Transmission Jack)
Delivery : These products include delivery direct to your premises within the UK. Some of the Scottish Highlands & Islands may incur extra delivery costs, if you are located in these regions, please ring before you buy.
All of the above units can be safely operated by one mechanic, they are very flexible when used under a vehicle. Closed minimum height is 1155mm and will fully extend to an unusually high height of 2100mm. When the unit reaches full height it will remain stable due to the wide four legged base frame with four heavy duty swivel wheels, two of which are lockable.
There is a large range of adaptor plates including a universal one or a selection for lifting manufacturers particular gearboxes, there is also an adaptor plate that will allow lifting assistance with heavy hubs. (see full range of adaptor plates below)
Optional Accessories include, selection of adaptor Plates, see below : -
To see the unit in action "click on the photo below.
Vertic
al Transmission Jacks Standard Features
Two way tilt adaptor – The lifting adaptor can easily be adjusted into a precise position when removing most types of transmission.
Triple extension ram with chrome piston – Provides up to 945mm of stroke.
Manual hydraulic double acting power pack – Proven on other Majorlift equipment, this allows units of up to 2000kg to be removed with a smooth, safe and highly controllable application of power.
- Load test certificate – supplied with each unit.
- CE markings – conform to EC directives.
- Capacity 2000kg.
Optional Transmission Jack Adaptor Plates
Manoeuvering heavy gearboxes and transmissions is difficult, time consuming and potentially hazardous. This unique range of drive-line adaptor plates for transmission jacks are the perfect solution. They let you work swiftly, safely and precisely, preventing the perennial problems of alignment. Each plate is custom-designed to provide the perfect fit for the transmission you are working on. No more fudging with pieces of wood; no compromises on safety. Crucially by using a bespoke transmission plate the time will be significantly reduced that it takes you to disconnect, remove and then reposition transmissions.
Example: 9612 Universal Adaptor Plate
This Universal Adaptor Plate can readily be adjusted to provide precise positioning for a wide range of vehicles. Infinite adjustability is provided by moveable length and width settings. The unit can be accurately positioned and secured for most applications. Robustly constructed with a weight-bearing capacity of 2000kg, this unit can safely handle heavy vehicle gear boxes and differentials as shown.
Large range of various adaptors.
Majorlift offer adaptor plates for different makes such as DAFs, Landrover, Shoguns, Voith, Scania, Volvo, ZFs these can usually be offered straight out of stock.

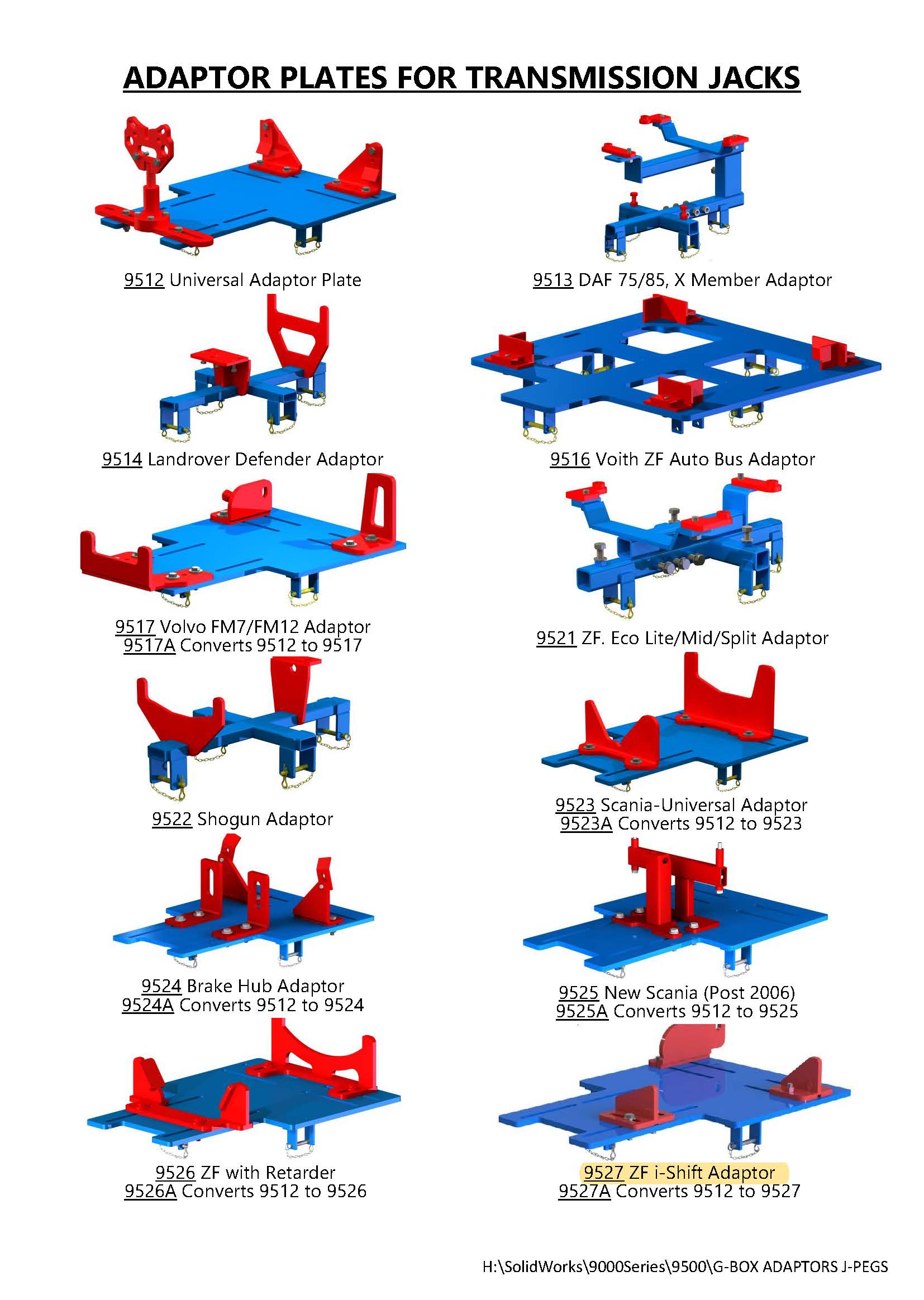

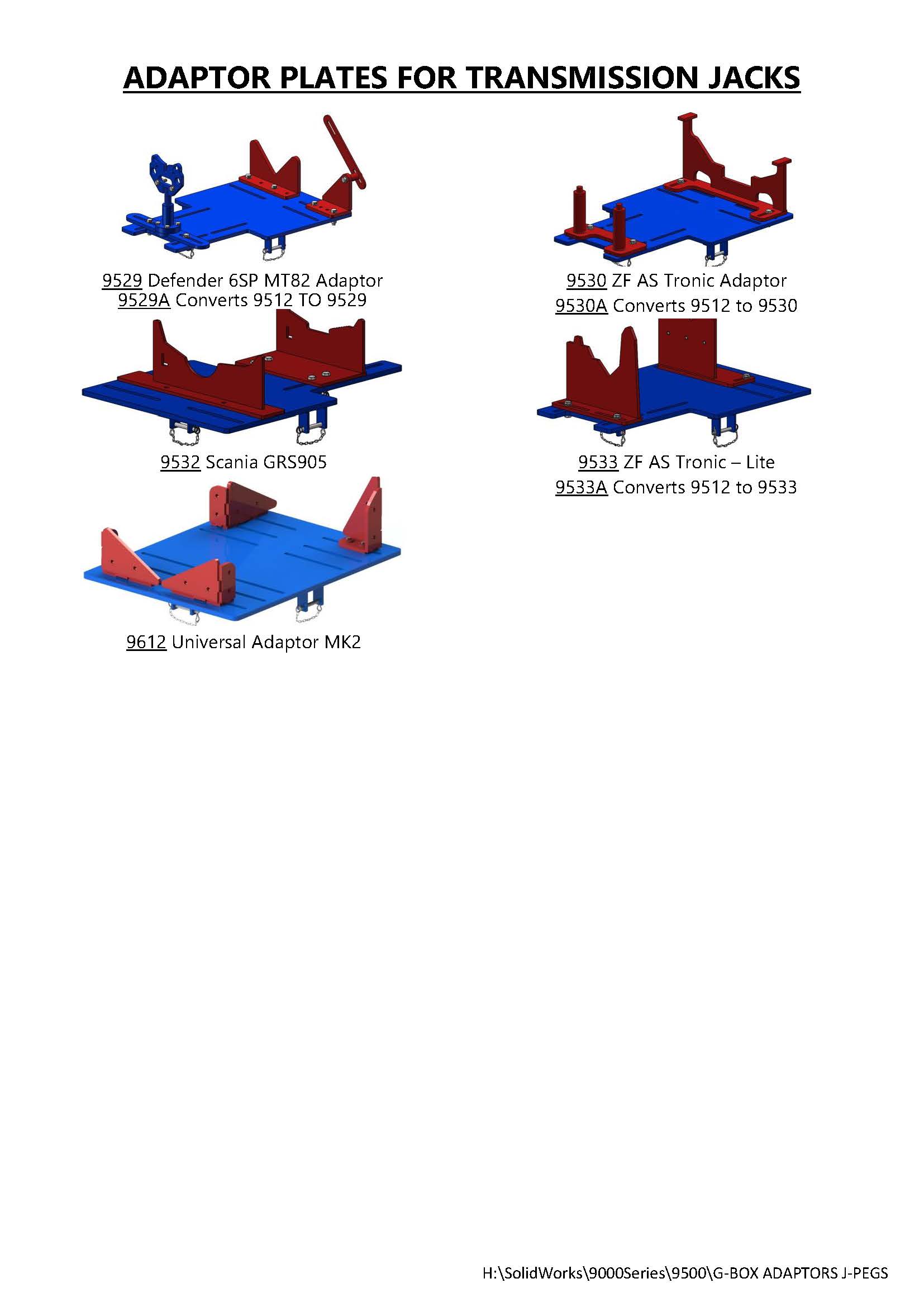

ADAPTOR PLATE OPTIONS (Not included with Transmission Jacks)
| 9512 Gearbox Adaptor (Blue) for larger transmissions etc, | £782.00 |
| 9612 Universal gearbox adaptor NEW PRODUCT | £744.00 |
| 9513 Gearbox Adaptor for ZF9S & 6S - 106 Daf (Blue) | £572.00 |
| 9514 Landrover Defender Adaptor | £418.00 |
| 9515 Adaptor blocks for use with 9513 Gearbox Adaptor- Daf 85 | £114.00 |
| 9516 Voith and ZF Automatic - Bus Gearbox Adaptor | £787.00 |
| 9517 Volvo FM7- FM12 Gearbox Adaptor Plate | £732.00 |
| 9517A Volvo FM7- FM12 Gearbox Convertion set for use with 9512 Adaptor | £295.00 |
| 9521 ZF Eco Lite, Eco Mid, Eco Split Gearbox Adaptor Plate | £787.00 |
| 9522 Mitsubishi Shogun Gearbox Adaptor Plate | £339.00 |
| 9523 Scania GR800, GR900, GRS900, 92 owards Gearbox Adaptor Plate | £596.00 |
| 9523A Scania GR800, GR900, GRS900, 92 onwards Conversion set use with 9512 | £295.00 |
| 9524 Brake Hub Adaptor | £617.00 |
| 9524A Brake Hub Adaptor Converstion set | £381.00 |
| 9525 Scania Adaptor Post 2006 | £782.00 |
| 9526 Volvo B12M Coach, ZF+Retard Adaptor Plate | £782.00 |
| 9526A Volvo B12M Coach, ZF+Retard Conversion Set | £339.00 |
| 9527 ZF i-Shift Adaptor | £818.00 |
Custom-designed
If you want a new plate designed and made for your specific application then Majorlift will create one for you rapidly, harnessing their CAD / CAM facilities.
Warranty Term 5 Years
Majorlift offer a 5 Year Warranty Term.
There is a provision that the prescribed maintenance schedule must have been carried out. All maintenance must be recorded in order to support any claim if necessary.

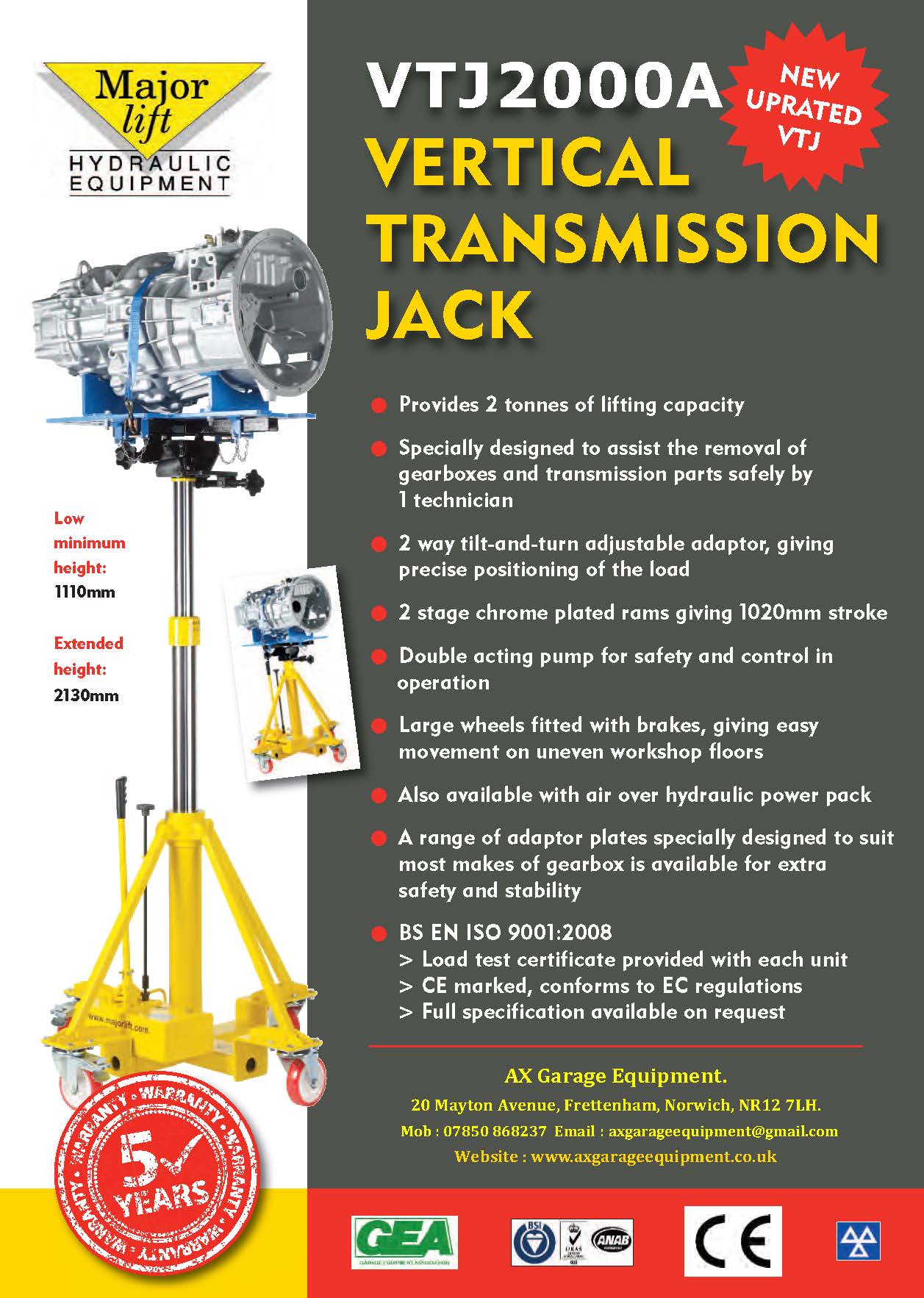

Download the Brochure:
