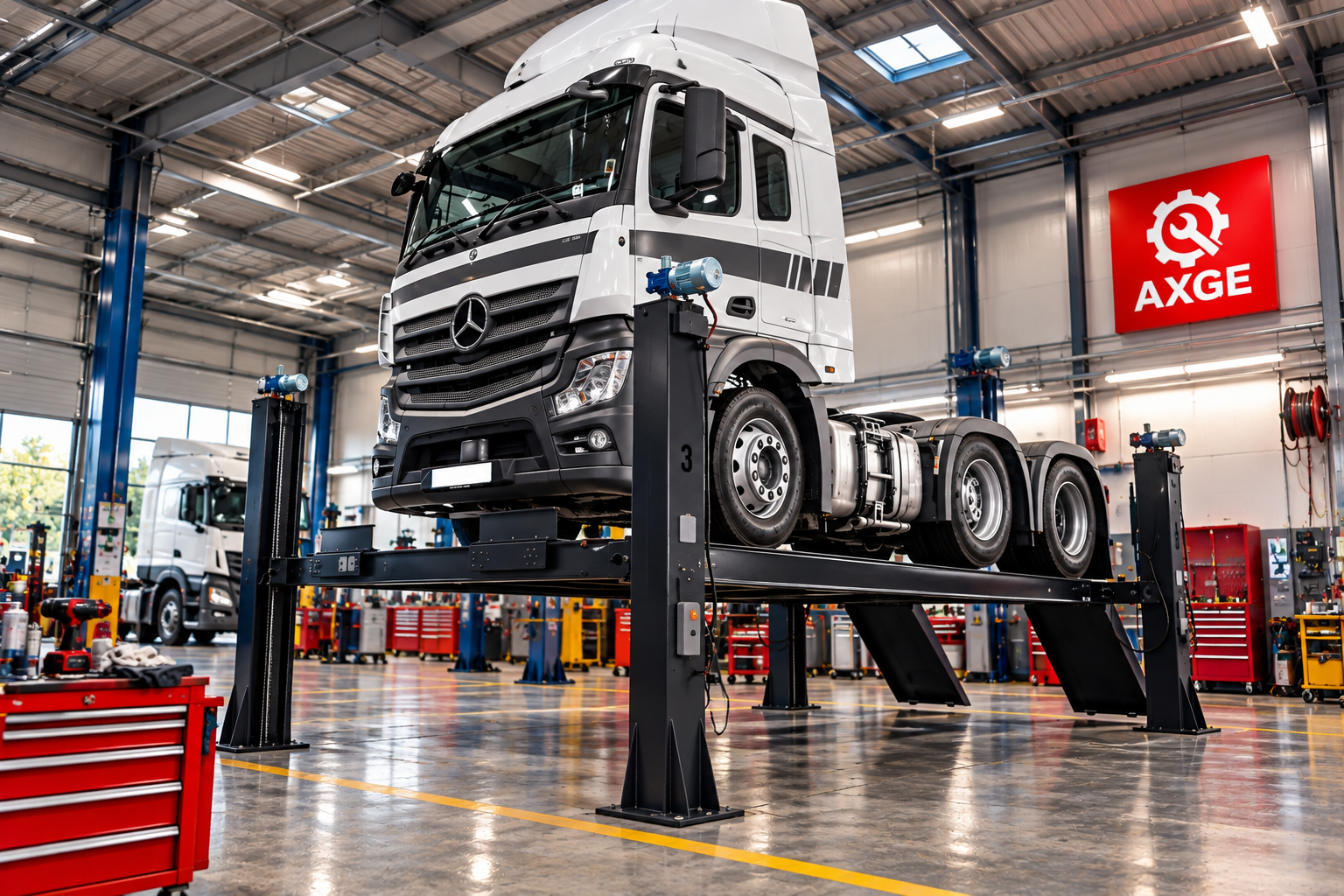

BRADMAC SM160/8 16 Tonne Heavy Duty Four Post HGV Lift – 8m Platforms
The BRADMAC SM160/8 is a heavy-duty four-post vehicle lift designed for professional HGV workshops, commercial vehicle service centres and fleet maintenance facilities. With a 16-tonne lifting capacity and 8-metre-long platforms, this lift is designed to accommodate a wide range of commercial vehicles requiring servicing, inspection and maintenance. The SM160/8 can be supplied for either surface-mounted or recessed installation, allowing it to be configured to suit your workshop layout. It is an ideal solution where a fixed lifting system is preferred over mobile column lifts. Key features: 16-tonne lifting capacity. 8-metre-long lifting platforms. Heavy-duty four-post design. Available for surface-mounted or recessed installation. Designed for commercial vehicle workshops and HGV service centres. Suitable for routine servicing, inspections and under-vehicle maintenance. Please contact AXGE for further information about installation requirements, dimensions, vehicle compatibility and available options.
- Brand: BRADMAC
- SKU: SM160/8
Product Description
AX Garage Equipment offer you the,
Bradmac SM160/8 Surface mounted model £ 33,150.00 + vat ( £ 39,780.00 inc vat )
or alternatively the,
Bradmac SM160/8i Recessed in floor model £ 32,650.00 + vat ( £ 39,180.00 inc vat )
Options available include:
Jacking Beam
Twin Ram, Air operated, Jacking Beam 12 tonne capacity £ 4,165.00 + vat
Lighting Kit
Factory Fitted Lighting Kit for the 7 & 8m platform models £ 3,150.00 + vat.
NOTE : Delivery & Installation, customer involvement.
* Delivery and installation is included in the price.
* However, due to the heavy weights involved the customer will be required to supply a forklift with driver to assist with the offloading and installation.
Electrical supply : A 3-phase supply and electrician will be required.
All BRADMAC Products include a 2 year manufacturers warranty.
PRICE PROMISE : We offer a Price Promise on all our sales, see below.
BRADMAC heavy duty four post lifts are the ideal solution where a fixed position lift is required or the flexibility of mobile vehicle lifts is not needed.
Within this range of HGV lifts we offer a choice of 16 - 35 tonnes lifting capacity plus a choice of platform lengths from 7 - 10 meters. These high quality and very reliable four post lifts are suitable for lifting most types of commercial vehicles and as an added bonus they can be purchased in surface mounted or recessed into the floor versions.
PRODUCT FEATURES
• Electro-mechanical lifting system with self alignment
• Low floor option ramps if required
• Drive on and off drive through options available
• Compatible to lift, Jacking beam options available
• Lighting Options available
• Site Surveys upon request
• IP Rating - the columns are IP67, however the control box is IP66
TECHNICAL DATA.
| BRADMAC Model | SM160/8 |
| Lifting Capacity | 16 tonnes |
| Motors (power) | 4 x 2.2 kw (3 - phase supply) |
| Lifting Height - Floor to top of Platform - Max | 1876 mm |
| Lowest Drive On Height - Lift down | 206 mm |
| Platform Length | 8000 mm |
| Run-Up ramps - Length | 1480 mm |
| Length of lift, including run-up ramps | 8630 mm |
| Width of Lift, including the posts | 4035 mm |
| Drive On width between posts | 3325 mm |
| Maximum outside width of both platforms | 2600 mm |
| Maximum platform width | 700 mm |
| Width between platforms | 1200 mm |
| Overall Height of Lifting posts | 2440 mm |
