BRADMAC SM200/7 – 20-Tonne Heavy-Duty Four Post HGV Lift
The BRADMAC SM200/7 is a heavy-duty four-post vehicle lift designed for professional HGV workshops, commercial vehicle service centres and fleet maintenance facilities. With a lifting capacity of 20 tonnes and 7-metre-long platforms, this lift provides a robust solution for servicing, inspection and maintenance of compatible heavy goods vehicles. The SM200/7 is suitable for workshops requiring a fixed lifting installation and can be supplied for surface-mounted or recessed installation, subject to site requirements. Key features: 20-tonne lifting capacity. 7-metre-long lifting platforms. Heavy-duty four-post construction. Surface-mounted or recessed installation options. Designed for commercial vehicle workshops and HGV maintenance facilities. Please contact AXGE for further information about dimensions, installation requirements, vehicle compatibility and available options.
- Brand: BRADMAC
- SKU: SM200/7
Product Description
AX Garage Equipment offer you the,
Bradmac SM200/7 Surface mounted model £ 37,675.00 + vat ( £ 43,326.25 inc vat )
or alternatively the,
Bradmac SM200/7i Recessed in floor model £ 37,200.00 + vat ( £ 44,640.00 inc vat )
Options available include:
Jacking Beam
Twin Ram, Air operated, Jacking Beam 12 tonne capacity £ 4,165.00 + vat
Lighting Kit
Factory Fitted Lighting Kit for the 7 & 8m platform models £ 3,150.00 + vat.
NOTE : Delivery & Installation, customer involvement.
* Delivery and installation is included in the price.
* However, due to the heavy weights involved the customer will be required to supply a forklift with driver to assist with the offloading and installation.
Electrical supply : A 3-phase supply and electrician will be required.
All BRADMAC Products include a 2 year manufacturers warranty.
PRICE PROMISE : We offer a Price Promise on all our sales, see below.

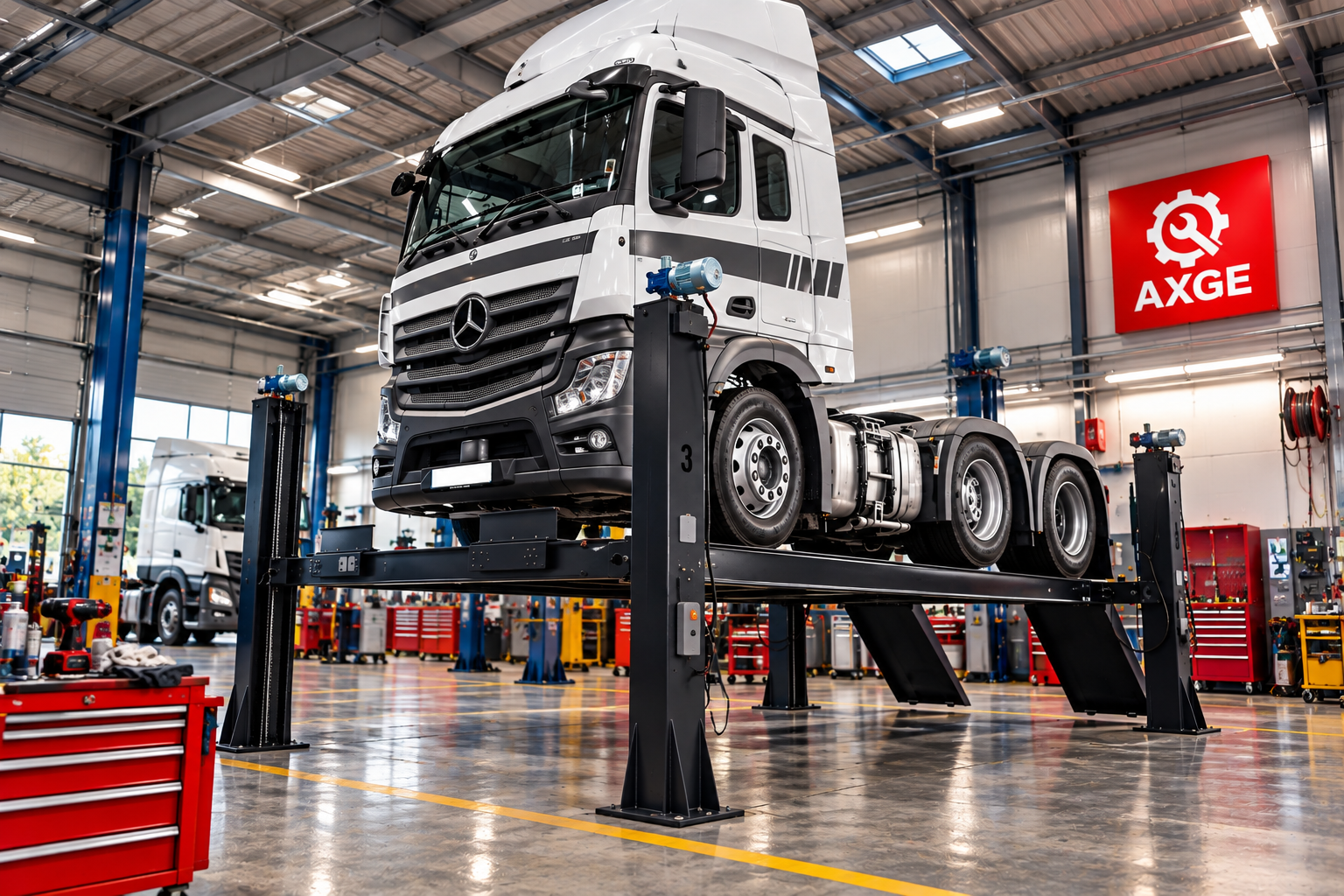

BRADMAC heavy duty four post lifts are the ideal solution where a fixed position lift is required or the flexibility of mobile vehicle lifts is not needed.
Within this range of HGV lifts we offer a choice of 16 - 35 tonnes lifting capacity plus a choice of platform lengths from 7 - 10 meters. These high quality and very reliable four post lifts are suitable for lifting most types of commercial vehicles and as an added bonus they can be purchased in surface mounted or recessed into the floor versions.
PRODUCT FEATURES
• Electro-mechanical lifting system with self alignment
• Low floor option ramps if required
• Drive on and off drive through options available
• Compatible to lift, Jacking beam options available
• Lighting Options available
• Site Surveys upon request
• IP Rating - the columns are IP67, however the control box is IP66
TECHNICAL DATA.
| BRADMAC Model | SM200/7 |
| Lifting Capacity | 20 tonnes |
| Motors (power) | 4 x 2.2 kw (3 - phase supply) |
| Lifting Height - Floor to top of Platform - Max | 1876 mm |
| Lowest Drive On Height - Lift down | 206 mm |
| Platform Length | 7000 mm |
| Run-Up ramps - Length | 1480 mm |
| Length of lift, including run-up ramps | 7630 mm |
| Width of Lift, including the posts | 4035 mm |
| Drive On width between posts | 3325 mm |
| Maximum outside width of both platforms | 2600 mm |
| Maximum platform width | 700 mm |
| Width between platforms | 1200 mm |
| Overall Height of Lifting posts | 2440 mm |
