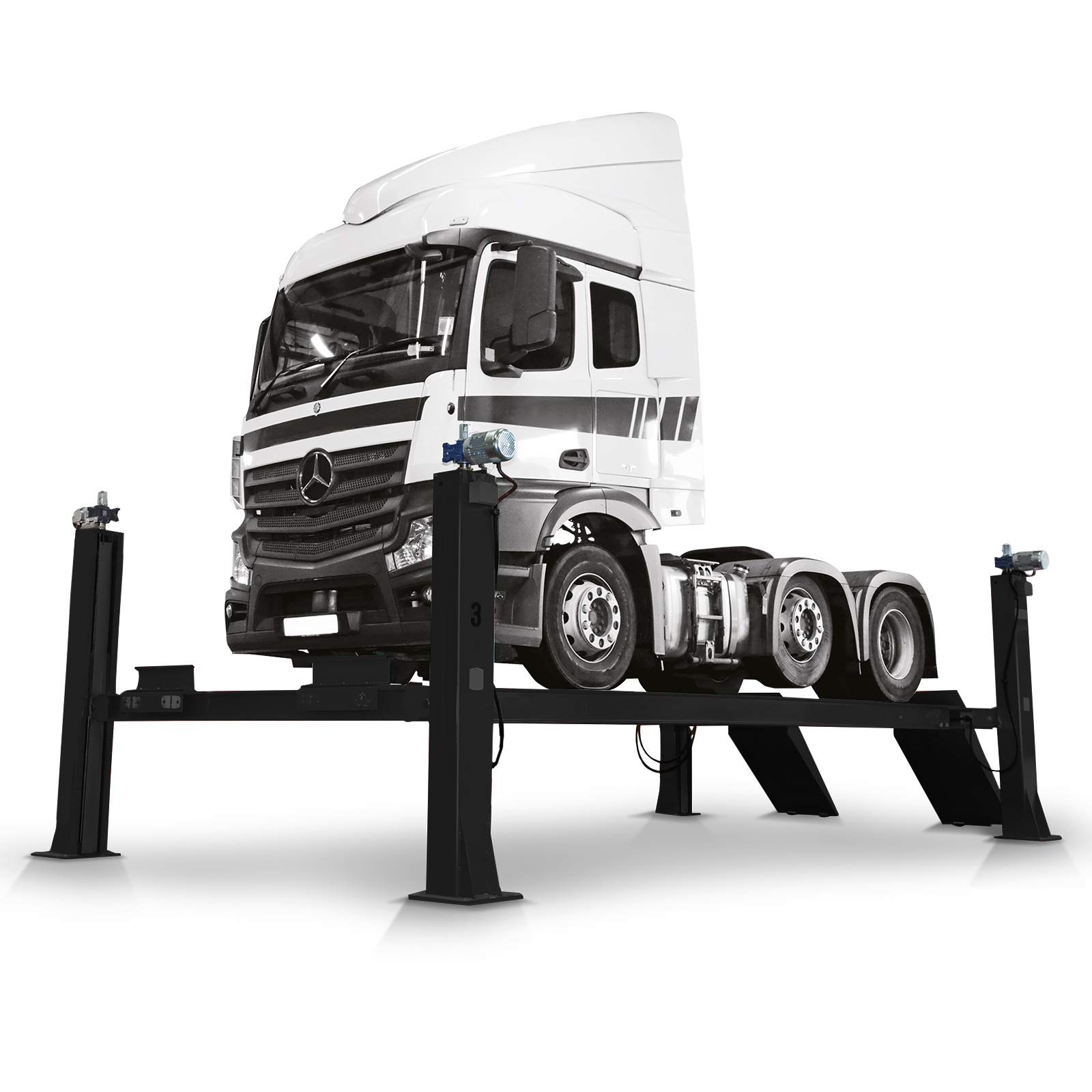

BRADMAC SM200/8 – 20 Tonne Four Post HGV Lift, 8m Platforms
The BRADMAC SM200/8 is a heavy-duty four-post vehicle lift designed for professional HGV workshops, commercial vehicle service centres and fleet maintenance facilities. With a 20-tonne lifting capacity and 8-metre-long platforms, this lift is designed to accommodate compatible heavy goods vehicles for servicing, inspection and maintenance. Key features: 20-tonne lifting capacity. 8-metre-long platforms. Heavy-duty four-post construction. Available for surface-mounted or recessed installation, subject to site requirements. Designed for professional commercial vehicle workshops. Please contact AXGE for further information about vehicle compatibility, installation requirements and available options.
- Brand: BRADMAC
- SKU: SM200/8
Product Description
AX Garage Equipment offer you the,
Bradmac SM200/8 Surface mounted model £ 38,700.00 + vat ( £ 46,440.00 inc vat )
or alternatively the,
Bradmac SM200/8i Recessed in floor model £ 38,200.00 + vat ( £ 45,840.00 inc vat )
Options available include:
Jacking Beam
Twin Ram, Air operated, Jacking Beam 12 tonne capacity £ 4,165.00 + vat
Lighting Kit
Factory Fitted Lighting Kit for the 7 & 8m platform models £ 3,150.00 + vat.
NOTE : Delivery & Installation, customer involvement.
* Delivery and installation is included in the price.
* However, due to the heavy weights involved the customer will be required to supply a forklift with driver to assist with the offloading and installation.
Electrical supply : A 3-phase supply and electrician will be required.
All BRADMAC Products include a 2 year manufacturers warranty.
PRICE PROMISE : We offer a Price Promise on all our sales, see below.
BRADMAC heavy duty four post lifts are the ideal solution where a fixed position lift is required or the flexibility of mobile vehicle lifts is not needed.
Within this range of HGV lifts we offer a choice of 16 - 35 tonnes lifting capacity plus a choice of platform lengths from 7 - 10 meters. These high quality and very reliable four post lifts are suitable for lifting most types of commercial vehicles and as an added bonus they can be purchased in surface mounted or recessed into the floor versions.
PRODUCT FEATURES
• Electro-mechanical lifting system with self alignment
• Low floor option ramps if required
• Drive on and off drive through options available
• Compatible to lift, Jacking beam options available
• Lighting Options available
• Site Surveys upon request
• IP Rating - the columns are IP67, however the control box is IP66
TECHNICAL DATA.
| BRADMAC Model | SM200/8 |
| Lifting Capacity | 20 tonnes |
| Motors (power) | 4 x 2.2 kw (3 - phase supply) |
| Lifting Height - Floor to top of Platform - Max | 1876 mm |
| Lowest Drive On Height - Lift down | 206 mm |
| Platform Length | 8000 mm |
| Run-Up ramps - Length | 1480 mm |
| Length of lift, including run-up ramps | 9630 mm |
| Width of Lift, including the posts | 4035 mm |
| Drive On width between posts | 3325 mm |
| Maximum outside width of both platforms | 2600 mm |
| Maximum platform width | 700 mm |
| Width between platforms | 1200 mm |
| Overall Height of Lifting posts | 2440 mm |
PRICE PROMISE :
Please Note : All Pricing on our Website includes 20% vat.
We promise never to be beaten on price by our competitors, if you see a price advertised cheaper than us, we will match it for you, no problem! We simply need to make sure the item you have seen is identical and in our stock, and then we’re good to go.
Some of the Scottish Highlands & Islands may incur extra delivery costs, if you are located in these regions, please ring before you buy.
