EV Car Battery Lift

Order yours today :

EV CAR BATTERY LIFT - 1.0 tonne £2,595.00 + vat  ( £3,114.00 inc vat)

Note :

Prices quoted include delivery to your premises within the UK.

Scottish Highlands & Islands incur an extra delivery cost of £100.00 + vat.

We offer a Pricing Promise

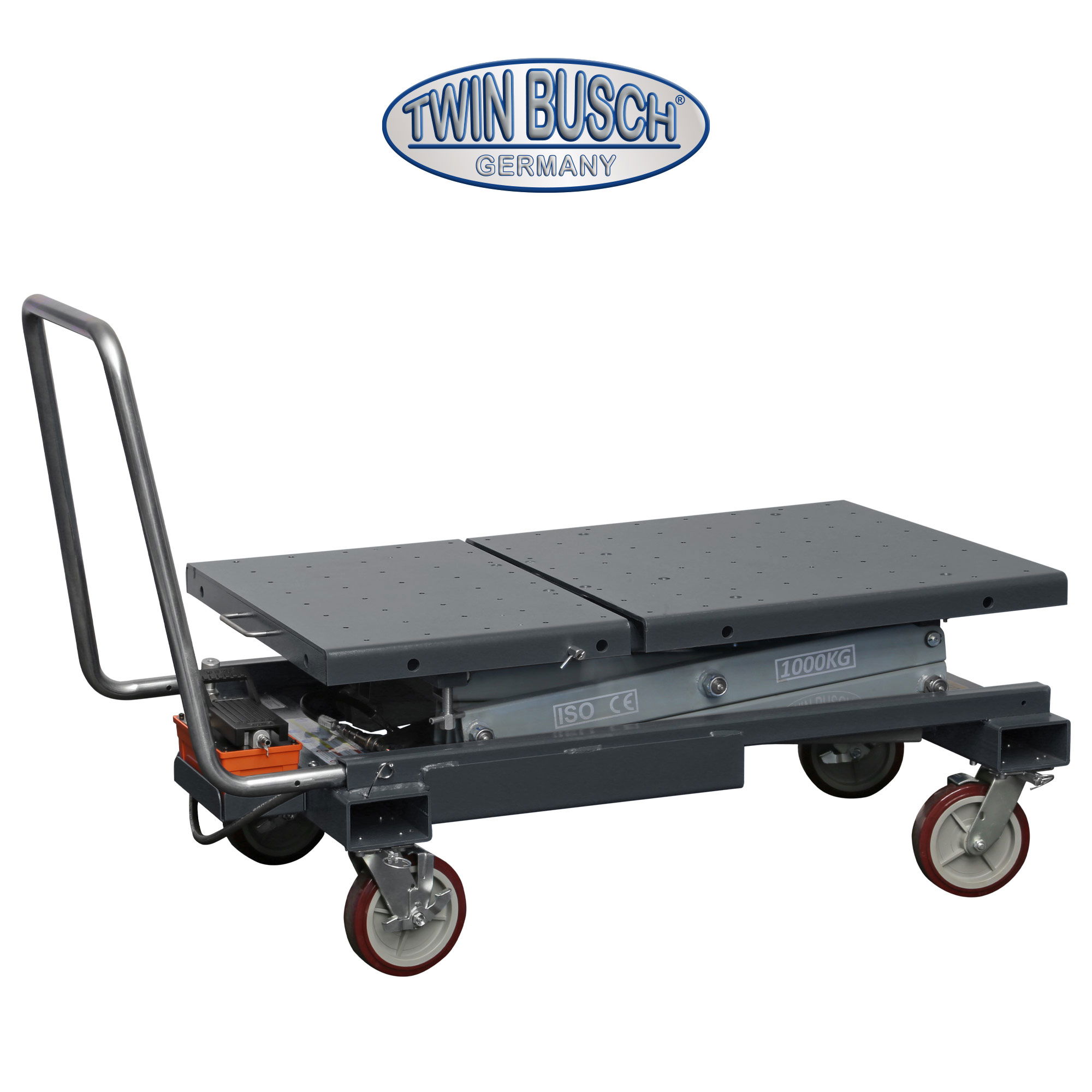

Battery Lifting Table for Electric Vehicles.

Professional scissor lift table 1000 kg, with pneumatic-hydraulic -drive and 5-fold lifting and lowering speed, platform with extension and inclination angle adjustable in longitudinal direction as well as optionally available 8 adapter plates and 8 pick-ups, is suitable for daily professional workshop use. This professional scissor lift table can be moved as easily as a pallet truck.

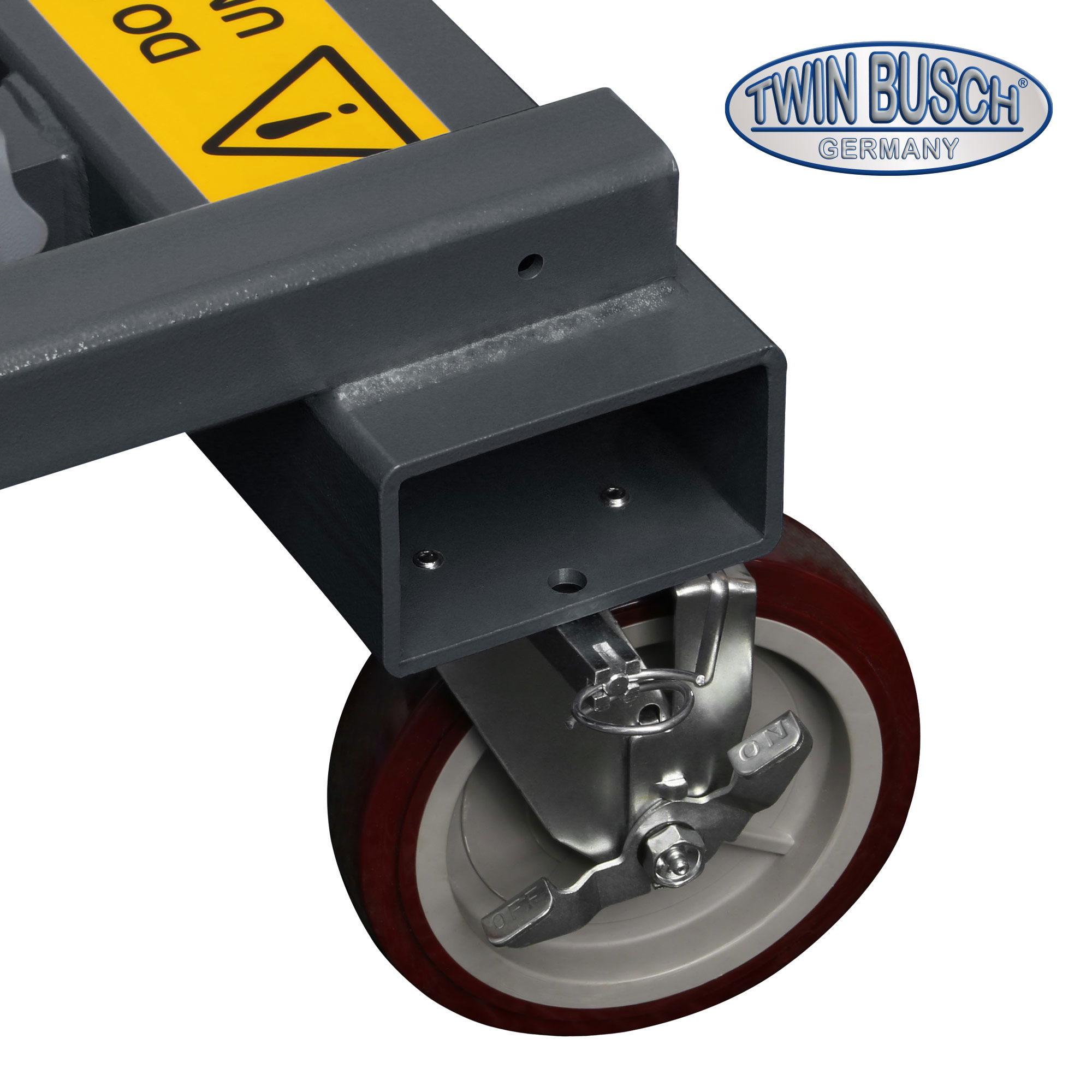

The scissor lift table is equipped with four 360-degree swivel castors with brake and rotation lock functions for maximum mobility and manoeuvrability during use.

Perfect for disassembly & assembly of vehicle components such as axle, engine, transmission and vehicle battery. Lifting platform slides approximately 40 mm in lateral movement and locks for easy placement. The adjustable mounting surface of the lifting platform is equipped with 136 threaded holes (M10) which, in combination with the optionally available 8 adapter plates and 8 pick-ups, can be used extremely flexibly for the respective positioning.

Features

• Top built quality with CE-certificate
• Manufactured according to ISO 9001
• Pneumatic hydraulic drive (compressed air is required)

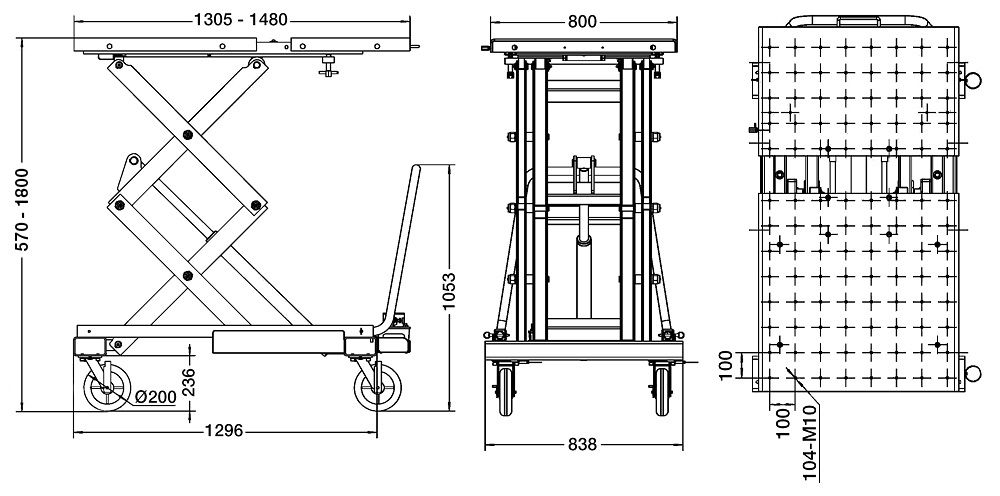

• Platform size width: 800 mm length: 1310 mm to 1490 mm
• Inclination angle of the platform adjustable in longitudinal direction
• Optional 8 adapter plates with 8 receptacles for flexible mounting
• 40 + 64 = 104 holes M10 with thread for fixture mounting
• 5-fold lifting and lowering speed
• 2-fold adjustable and removable push handle
• Four 360-degree swivel castors with brake function and rotation stop function
• High-quality construction made of special rolled profile
• 1 hydraulic cylinder for powerful lifting and lowering
• High quality powder coating

Technical Data

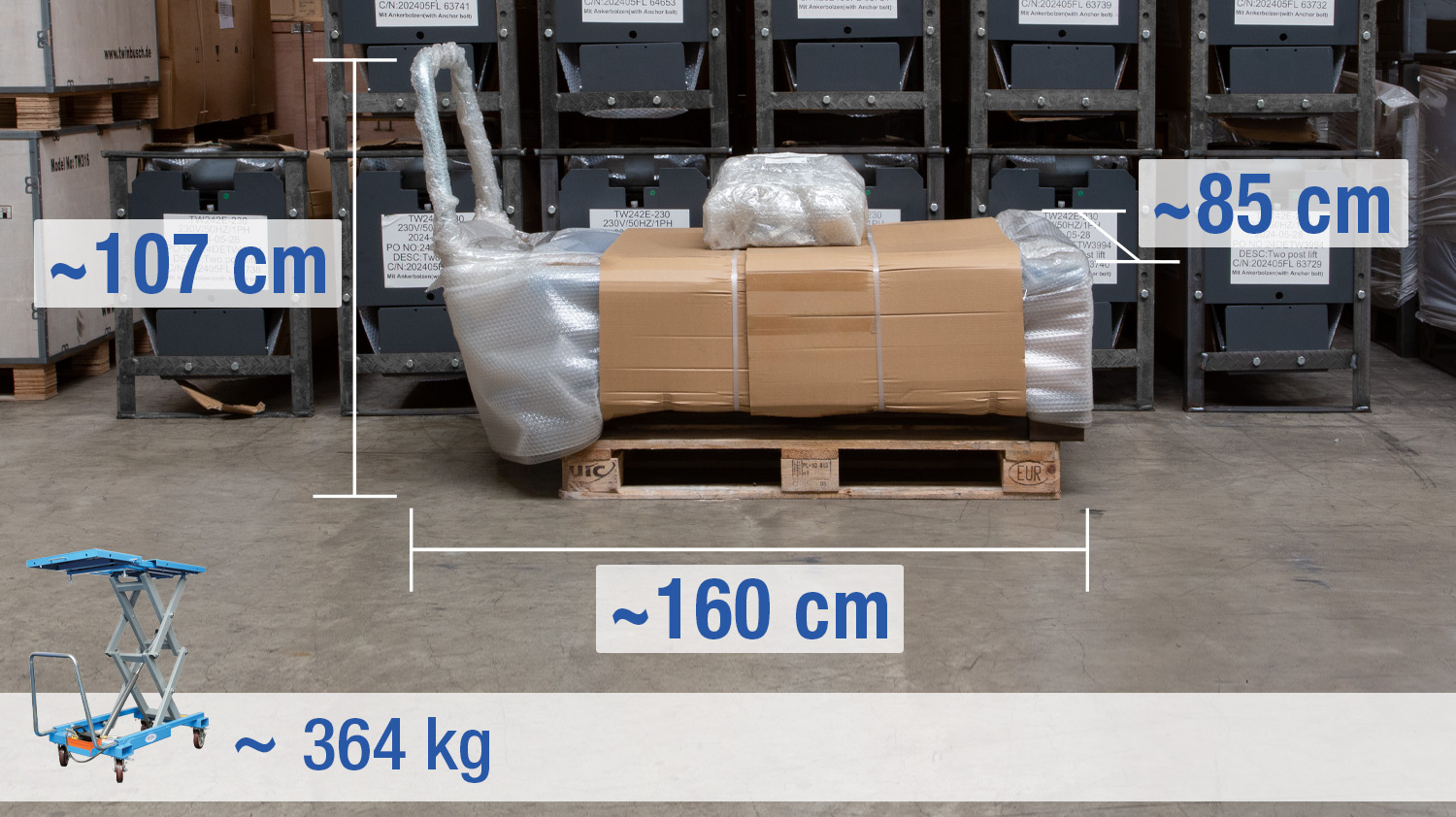

Overall Dimensions:

Actual packaged product dimensions as delivered to your premises.
